2SC2413KT146Q, US $ .05-.13 , ROHM Semiconductor, 2SC2413KT146Q DataSheet download, circuit diagram from SeekIC.com

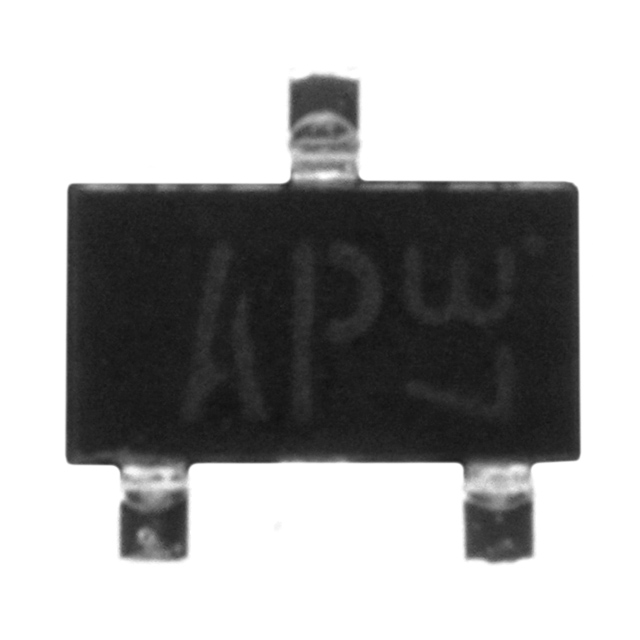

See larger image

SeekIC No. : 00208311 Detail

2SC2413KT146Q: Transistors Bipolar (BJT) NPN 25V 50MA

2SC2413KT146Q Data Sheet

US $ .05~.13 / Piece | Get Latest Price

Part Number:: 2SC2413KT146Q
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.13
$.07
$.06
$.05

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2SC2000 evaluate
DescriptionThe 2SC2000 is designed for use in AM/RF stage of CAR RADIO and general purpose applica...
2SC2001 evaluate
DescriptionThe 2SC2001 is designed for use in output stage of portable RADIO and cassette type tap...
2SC2002 evaluate
DescriptionThe 2SC2002 is designed for use in driver stage of high voltage audio equipments. Feat...

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	25 V
Emitter- Base Voltage VEBO :	5 V	Maximum DC Collector Current :	0.05 A
DC Collector/Base Gain hfe Min :	120 at 1 mA at 6 V	Configuration :	Single
Maximum Operating Frequency :	300 MHz	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SC-59
Packaging :	Reel

Description

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Emitter- Base Voltage VEBO : 5 V
Package / Case : SC-59
Maximum Operating Frequency : 300 MHz
Collector- Emitter Voltage VCEO Max : 25 V
Maximum DC Collector Current : 0.05 A
DC Collector/Base Gain hfe Min : 120 at 1 mA at 6 V

Parameters:

Technical/Catalog Information	2SC2413KT146Q
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	25V
Current - Collector (Ic) (Max)	50mA
Power - Max	200mW
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 1mA, 6V
Vce Saturation (Max) @ Ib, Ic	300mV @ 1mA, 10mA
Frequency - Transition	300MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Surface Mount
Package / Case	SC-59-3, SMT3, SOT-346, TO-236
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2SC2413KT146Q 2SC2413KT146Q
