2SC2411KT146R

Transistors Bipolar (BJT) NPN 32V 0.5A

product image

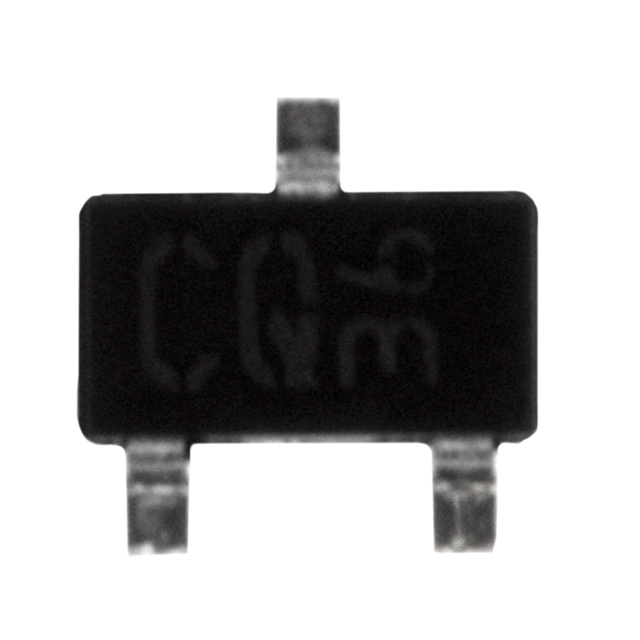

2SC2411KT146R Picture
See larger image
SeekIC No. : 00206566 Detail

2SC2411KT146R: Transistors Bipolar (BJT) NPN 32V 0.5A

2SC2411KT146R Data Sheet

floor Price/Ceiling Price

US $ .07~.26 / Piece | Get Latest Price
Part Number:
2SC2411KT146R
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~500
  • Unit Price
  • $.26
  • $.17
  • $.12
  • $.07
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : NPN Collector- Emitter Voltage VCEO Max : 32 V
Emitter- Base Voltage VEBO : 5 V Maximum DC Collector Current : 0.5 A
DC Collector/Base Gain hfe Min : 120 Configuration : Single
Maximum Operating Frequency : 250 MHz Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : SC-59
Packaging : Reel

Description

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Emitter- Base Voltage VEBO : 5 V
Package / Case : SC-59
Maximum Operating Frequency : 250 MHz
Maximum DC Collector Current : 0.5 A
DC Collector/Base Gain hfe Min : 120
Collector- Emitter Voltage VCEO Max : 32 V


Parameters:

Technical/Catalog Information2SC2411KT146R
VendorRohm Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)32V
Current - Collector (Ic) (Max)500mA
Power - Max200mW
DC Current Gain (hFE) (Min) @ Ic, Vce180 @ 100mA, 3V
Vce Saturation (Max) @ Ib, Ic600mV @ 50mA, 500mA
Frequency - Transition250MHz
Current - Collector Cutoff (Max)-
Mounting TypeSurface Mount
Package / CaseSC-59-3, SMT3, SOT-346, TO-236
PackagingTape & Reel (TR)
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 2SC2411KT146R
2SC2411KT146R
2SC2411KT146RTR ND
2SC2411KT146RTRND
2SC2411KT146RTR
