Part Number:: 2SC2344P
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2SC2000 evaluate
DescriptionThe 2SC2000 is designed for use in AM/RF stage of CAR RADIO and general purpose applica...
2SC2001 evaluate
DescriptionThe 2SC2001 is designed for use in output stage of portable RADIO and cassette type tap...
2SC2002 evaluate
DescriptionThe 2SC2002 is designed for use in driver stage of high voltage audio equipments. Feat...

Product Details

Description

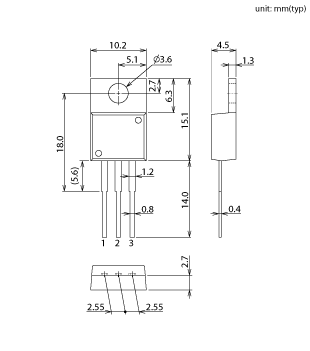

Pinout

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Collector-to-base Voltage	V_CBO		(-)180	V
Collector-to-emitter Voltage	V_CEO		(-)160	V
Emitter-base Voltage	V_EBO		(-)6	V
Collector Current	I_C		(-)1.5	A
Collector Current (Pulse)	I_CP		(-)3	A
Collector dissipation	P_C	Tc=25	30	W
Junction Temperature	T_j		150
Storage Temperature	T_stg		-55 to +150

Absolute maximum ratings
VCEO [V]	160
IC [A]	1.5
PC Tc=25°C [W]	30

Electrical characteristics
hFE min	60
hFE max	200
VCE [V]	5
IC [A]	0.3
VCE (sat) max *typ [V]	0.3
IC [A]	0.5
IB [mA]	50
Cob typ [pF]	23
VCB [V]	10
