Product Details

Description



Application

·Designed for audio power amplifier applications.

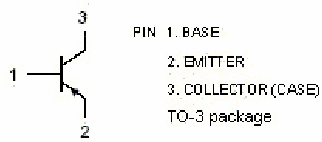

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER VALUE UNIT
VCBO Collector-Base Voltage -120 V
VCBO Collector-Base Voltage -120 V
VEBO Collector-Base Voltage -5 V
IC Collector-Base Voltage -12 A
IE Emitter Current-Continuous 12 A
PC Collector Power Dissipation
@ TC=75		 100 W
TJ Junction Temperature 150
Tstg Storage Temperature Range -65~150



Description

The  2SB679 features:

`High Power Dissipation- : PC= 100W(Max.)@TC=25
`Collector-Emitter Breakdown Voltage- : V(BR)CEO= -120V(Min.)
`Complement to Type 2SC1079
