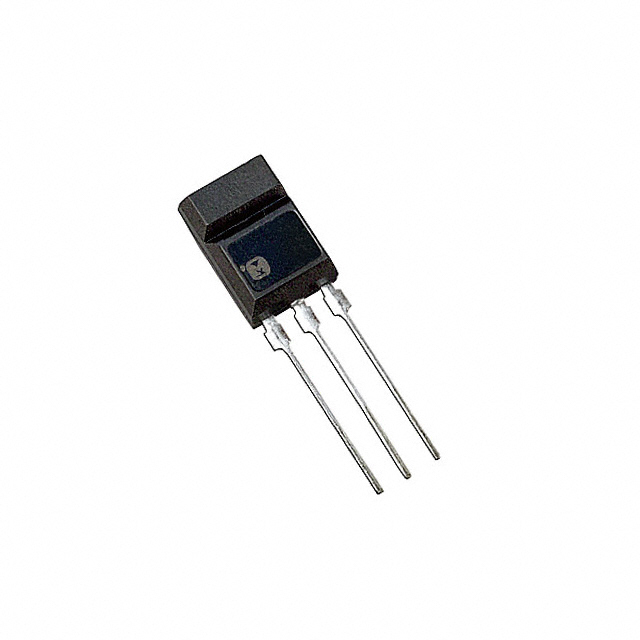

2SB14140RA: TRANS PNP 150VCEO 1A MT-3

2SB14140RA Data Sheet

US $ .33~.6 / Piece | Get Latest Price

Part Number:: 2SB14140RA
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500

Unit Price
$.6
$.47
$.43
$.37
$.33

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/9/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2SB1000 evaluate
Application Low FREQUENCY POWER AMPLIFIER Complementary pair with 2SD1366 Specifications It...
2SB1000A evaluate
Application Low FREQUENCY POWER AMPLIFIER Complementary pair with 2SD1366A Specifications I...
2SB1001 evaluate
Application· Low frequency power amplifier· Complementary pair with 2SD1367Specifications P...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Transistor Type:	PNP	Current - Collector (Ic) (Max):	1A
Voltage - Collector Emitter Breakdown (Max):	150V	Capacitance :	300 pF
Resistor - Base (R1) (Ohms):	-	Vce Saturation (Max) @ Ib, Ic:	2V @ 50mA, 500mA
Current - Collector Cutoff (Max):	-	Resistor - Emitter Base (R2) (Ohms):	-
DC Current Gain (hFE) (Min) @ Ic, Vce:	130 @ 150mA, 10V	Power - Max:	1.5W
Frequency - Transition:	200MHz	Mounting Type:	Through Hole
Package / Case:	3-SIP	Supplier Device Package:	MT-3-A1

Description

Series: -
Resistor - Base (R1) (Ohms): -
Current - Collector Cutoff (Max): -
Resistor - Emitter Base (R2) (Ohms): -
Transistor Type: PNP
Frequency - Transition: 200MHz
Mounting Type: Through Hole
Voltage - Collector Emitter Breakdown (Max): 150V
Packaging: Cut Tape (CT)
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Current - Collector (Ic) (Max): 1A
Package / Case: 3-SIP
Power - Max: 1.5W
DC Current Gain (hFE) (Min) @ Ic, Vce: 130 @ 150mA, 10V
Supplier Device Package: MT-3-A1
Vce Saturation (Max) @ Ib, Ic: 2V @ 50mA, 500mA

Parameters:

Technical/Catalog Information	2SB14140RA
Vendor	Panasonic - SSG (VA)
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	150V
Current - Collector (Ic) (Max)	1A
Power - Max	1.5W
DC Current Gain (hFE) (Min) @ Ic, Vce	130 @ 150mA, 10V
Vce Saturation (Max) @ Ib, Ic	2V @ 50mA, 500mA
Frequency - Transition	200MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Through Hole
Package / Case	MT-3
Packaging	Cut Tape (CT)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2SB14140RA 2SB14140RA 2SB14140RACT ND 2SB14140RACTND 2SB14140RACT
