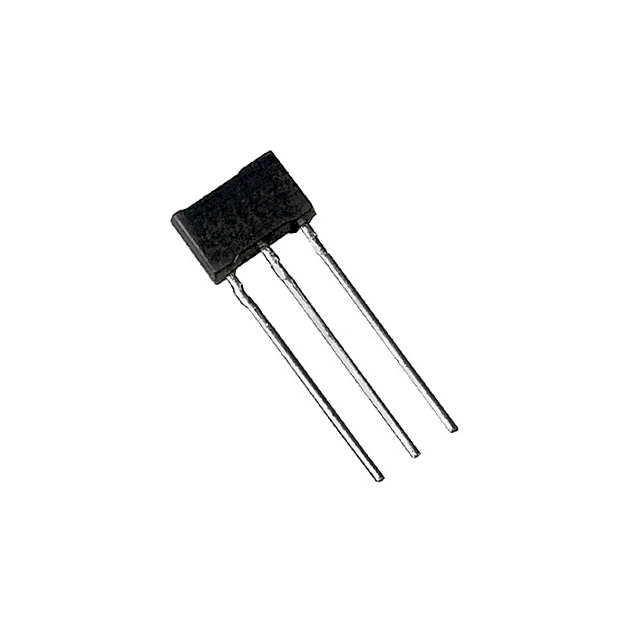

2SB13980QA: TRANS PNP LF AMP 25VCEO MT-2

2SB13980QA Data Sheet

US $ .22~.51 / Piece | Get Latest Price

Part Number:: 2SB13980QA
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000

Unit Price
$.51
$.4
$.36
$.31
$.28
$.22

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2SB1000 evaluate
Application Low FREQUENCY POWER AMPLIFIER Complementary pair with 2SD1366 Specifications It...
2SB1000A evaluate
Application Low FREQUENCY POWER AMPLIFIER Complementary pair with 2SD1366A Specifications I...
2SB1001 evaluate
Application· Low frequency power amplifier· Complementary pair with 2SD1367Specifications P...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Transistor Type:	PNP	Current - Collector (Ic) (Max):	5A
Package / Case :	SOT-6	Voltage - Collector Emitter Breakdown (Max):	25V
Resistor - Base (R1) (Ohms):	-	Vce Saturation (Max) @ Ib, Ic:	1V @ 100mA, 3A
Current - Collector Cutoff (Max):	-	Resistor - Emitter Base (R2) (Ohms):	-
DC Current Gain (hFE) (Min) @ Ic, Vce:	120 @ 2A, 2V	Power - Max:	1W
Frequency - Transition:	120MHz	Mounting Type:	Through Hole
Package / Case:	3-SIP	Supplier Device Package:	MT-2-A1

Description

Series: -
Resistor - Base (R1) (Ohms): -
Current - Collector Cutoff (Max): -
Resistor - Emitter Base (R2) (Ohms): -
Packaging: Cut Tape (CT)Alternate Packaging
Transistor Type: PNP
Voltage - Collector Emitter Breakdown (Max): 25V
Mounting Type: Through Hole
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Package / Case: 3-SIP
Power - Max: 1W
Frequency - Transition: 120MHz
Current - Collector (Ic) (Max): 5A
Supplier Device Package: MT-2-A1
Vce Saturation (Max) @ Ib, Ic: 1V @ 100mA, 3A
DC Current Gain (hFE) (Min) @ Ic, Vce: 120 @ 2A, 2V

Parameters:

Technical/Catalog Information	2SB13980QA
Vendor	Panasonic - SSG
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	25V
Current - Collector (Ic) (Max)	5A
Power - Max	1W
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 2A, 2V
Vce Saturation (Max) @ Ib, Ic	1V @ 100mA, 3A
Frequency - Transition	120MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Through Hole
Package / Case	MT-2
Packaging	Tape & Box (TB)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2SB13980QA 2SB13980QA 2SB13980QATB ND 2SB13980QATBND 2SB13980QATB
