2SA933ASTPS Selling Leads, Price trend , ROHM Semiconductor, 2SA933ASTPS DataSheet download, circuit diagram from SeekIC.com

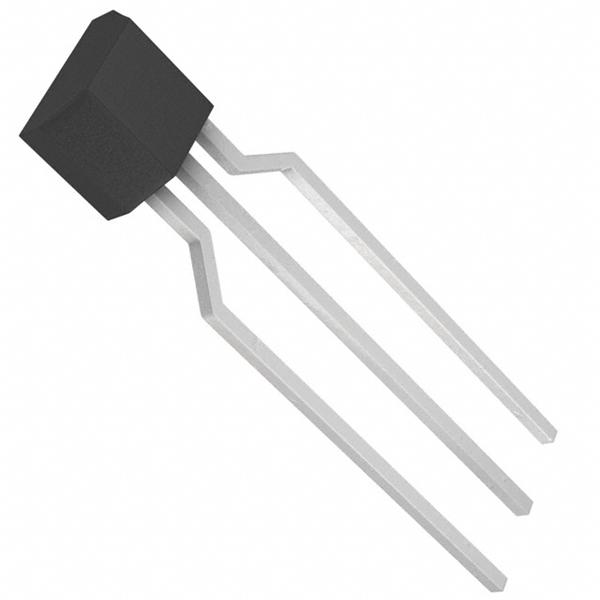

See larger image

SeekIC No. : 00213022 Detail

2SA933ASTPS: Transistors Bipolar (BJT) PNP 50V 0.15A

2SA933ASTPS Data Sheet

Get Latest Price

Part Number:: 2SA933ASTPS
Mfg:: ROHM Semiconductor
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

2SA900 evaluate
Features: • Low collector-emitter saturation voltage VCE(sat)• TO-126B package which r...
2SA907 evaluate
Application·For power switching and general purpose applicationsSpecifications SYMBOL PA...
2SA908 evaluate
Application·For power switching and general purpose applicationsSpecifications SYMBOL PA...

Product Details

Quick Details

Transistor Polarity :	PNP	Collector- Emitter Voltage VCEO Max :	- 50 V
Emitter- Base Voltage VEBO :	- 6 V	Maximum DC Collector Current :	- 0.15 A
DC Collector/Base Gain hfe Min :	120	Configuration :	Single
Maximum Operating Frequency :	140 MHz	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SPT-3
Packaging :	Ammo

Description

Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Transistor Polarity : PNP
Collector- Emitter Voltage VCEO Max : - 50 V
Emitter- Base Voltage VEBO : - 6 V
Packaging : Ammo
DC Collector/Base Gain hfe Min : 120
Maximum Operating Frequency : 140 MHz
Package / Case : SPT-3
Maximum DC Collector Current : - 0.15 A

Parameters:

Technical/Catalog Information	2SA933ASTPS
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	50V
Current - Collector (Ic) (Max)	150mA
Power - Max	300mW
DC Current Gain (hFE) (Min) @ Ic, Vce	270 @ 1mA, 6V
Vce Saturation (Max) @ Ib, Ic	500mV @ 5mA, 50mA
Frequency - Transition	140MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Through Hole
Package / Case	SC-72-3, SPT
Packaging	Digi-Reel?
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2SA933ASTPS 2SA933ASTPS 2SA933ASTPSDKR ND 2SA933ASTPSDKRND 2SA933ASTPSDKR
