2SA1724

Features: · High fT (fT=1.5GHz typ).· High current (IC=300mA).· Adoption of FBET process.PinoutSpecifications Parameter Symbol Conditions Ratings Unit Collector-base voltage VCBO -30 V Collector-emitter voltage VCEO -20 V Emitter-base voltage VEBO ...

product image

2SA1724 Picture
See larger image
SeekIC No. : 004220212 Detail

2SA1724: Features: · High fT (fT=1.5GHz typ).· High current (IC=300mA).· Adoption of FBET process.PinoutSpecifications Parameter Symbol Conditions Ratings Unit Collector-base voltage VCB...

2SA1724 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
2SA1724
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High fT (fT=1.5GHz typ).
· High current (IC=300mA).
· Adoption of FBET process.

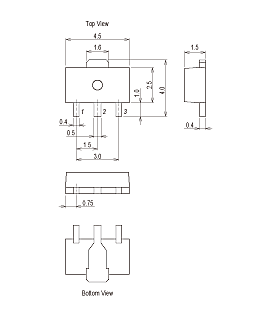

Pinout






Specifications

Parameter
Symbol
 Conditions
Ratings
Unit
Collector-base voltage
VCBO
-30
V
Collector-emitter voltage
VCEO
-20
V
Emitter-base voltage
VEBO
-3
V
Collector current
Ic
-300
mA
Collector Current (Pulse)
ICP
-600
mA
Collector Dissipation
PC
 Mounted on ceremic board (250mm2´0.8mm)
500
1.3
W
Junction temperature
Tj
150
°C
Storage temperature
Tstg
-55 to +150
°C


Absolute maximum ratings
VCBO [V] 30
VCEO [V] 20
VEBO [V] 3
IC [mA] 300
PC [mW] 1300
When mounted on ceramic substrate (250mm²×0.8mm)
Electrical characteristics
hFE min 15
hFE max 100
VCE [V] 5
IC [mA] 50
fT typ [GHz] 1.5
VCE [V] 5
IC [mA] 100
Cob typ [pF] 4.9
VCB [V] 10
VCE (sat) max [V] 1
IC [mA] 100
IB [mA] 10
Cre typ [pF] 4.4
