2N5738

Application·Designed for general-purpose power amplifier and switching applications.PinoutSpecifications SYMBOL PARAMETER VALUE Unit VCBO Collector-Base Voltage -100 V VCES Collector-Emitter Voltage -100 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous...

product image

2N5738 Picture
See larger image
SeekIC No. : 004219266 Detail

2N5738: Application·Designed for general-purpose power amplifier and switching applications.PinoutSpecifications SYMBOL PARAMETER VALUE Unit VCBO Collector-Base Voltage -100 V VCES Collect...

2N5738 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
2N5738
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

·Designed for general-purpose power amplifier and switching applications.




Pinout

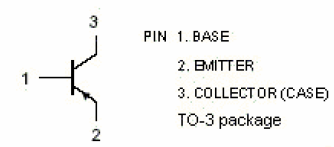

Connection Diagram




Specifications

SYMBOL PARAMETER VALUE Unit
VCBO Collector-Base Voltage -100 V
VCES Collector-Emitter Voltage -100 V
VEBO Emitter-Base Voltage -5 V
IC Collector Current-Continuous -10 A
ICM Collector Current-Peak -20 A
IB Base Current-Continuous -4 A
PC Collector Power Dissipation
@TC=100		 50 W
Tj Junction Temperature 150
Tstg Storage Temperature -65 -65~200





Description

·Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -100V(Min.)
·Low Collector Saturation Voltage- : VCE(sat)= -0.5V(Max.)@ IC= -5A
·Wide Area of Safe Operation

2N5738
