2998

Battery Cell Size :
Number of Batteries : 1
Material : Phosphor Bronze
Mounting Style : SMD/SMT
Product : Battery Contacts
Termination Style : SMD/SMT
Color : Silver


Features:

  ±3 A Peak Output Current
  Output Voltage to 50 V
  Integral Output Suppression Diodes
  Output Current Sensing
  TTL/CMOS Compatible Inputs
  Internal Thermal Shutdown Circuitry
  Crossover-Current Protected
  Automotive Capable

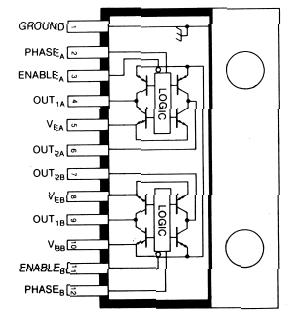

Pinout




Specifications

                 at T_J +150°C
Supply Voltage, V_BB .........................................  50 V
Output Current, I_OUT (continuous) .................  ±2 A
      (peak) .......................................................  ±3 A
Sink Driver Emitter Voltage, V_E ........................  1.5 V
Logic Input Voltage Range,
      V_PHASE or V_ENABLE .........................  -0.3 V to 15 V
Package Power Dissipation,
     P_D .......................................................  See Graph
Operating Temperature Range,
     T_A .............................................  -20°C to +85°C
Storage Temperature Range,
    T_S ............................................  -55°C to +150°C


Description

As an interface between low-level logic and solenoids, dc (brush) motors, or stepper motors, the UDN2998W dual full-bridge driver will operate inductive loads up to 50 V with continuous output currents of up to 2 A per bridge or peak (start-up) currents to 3 A.  The control inputs are compatible with TTL, DTL, and 5 V CMOS logic.  Except for a common supply voltage and thermal shutdown, the two drivers in each package are completely independent.

For external PWM control, an Output Enable for each 2998 bridge circuit is provided and the sink driver emitters are pinned out for connection to external current-sensing resistors.  The chopper drive mode is characterized by low power dissipation levels and maximum efficiency.  A PHASE input to each bridge determines load-current direction.

Extensive circuit protection is provided on-chip.  Both ground-clamp and flyback diodes for each bridge are provided.  A thermal shutdown circuit disables the load drive if chip temperature rating (package power dissipation) is exceeded. Internally-generated delays provide crossover-current protection.

The UDN2998W is packaged in a 12-pin single in-line power-tab package for high power capabilities.  Driving either of the bridges at the full 2 A dc rating requires the use of an external heat sink.  The tab is at ground potential and needs no insulation.
