28LV011

Features:

• 3.3V low voltage operation 128K x 8 Bit EEPROM
• RAD-PAK® radiation-hardened against natural space radiation
• Total dose hardness:
   - > 100 krad (Si), depending upon space mission
• Excellent Single Event Effects:
   - SEL_TH > 84 MeV/mg/cm2
   - SEU_TH > 37 Mev/mg/cm2 (read mode)
   - SEU saturated cross section = 3E-6 cm2 (read mode)
   - SEU_TH = 11.4 Mev/mg/cm2 (write mode)
   - SEU saturated cross section = 5E-3 cm2 (write mode) with hard errors
• Package:
   - 32 Pin RAD-PAK® flat pack
   - 32 Pin RAD-PAK® DIP
   - JEDEC-approved byte-wide pinout
• Address Access Time:
   - 200, 250 ns Access times available
• High endurance:
   - 10,000 erase/write (in Page Mode), 10-year data retention
• Page write mode:
   - 1 to 128 bytes
• Automatic programming
   - 15 ms automatic page/byte write
• Low power dissipation
   - 20 mW/MHz active current (typ.)
   - 72 µW standby (maximum)

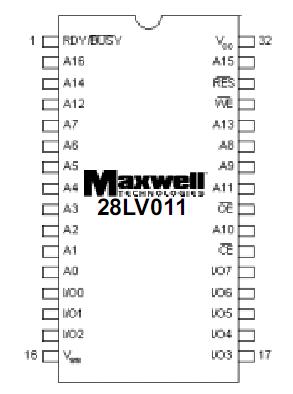

Pinout




Specifications



PARAMETER	SYMBOL	MIN	MAX	UNIT
Supply Voltage (Relative to Vss)	VCC	-0.6	7.0	V
Input Voltage (Relative to Vss)	VIN	-0.5 1	7.0	V
Operating Temperature Range	TOPR	-55	125	°C
Storage Temperature Range	TSTG	-65	150	°C

Description

Maxwell Technologies' 28LV011 high density, 3.3V, 1 Megabit EEPROM microcircuit features a greater than 100 krad (Si) total dose tolerance, depending upon space mission. The 28LV011 is capable of in-system electrical Byte and Page pro-grammability. It has a 128-Byte Page Programming function to make its erase and write operations faster. It also features Data Polling and a Ready/Busysignal to indicate the comple-tion of erase and programming operations. In the 28LV011,hardware data protection is provided with the RESpin, in addi-tion to noise protection on the WE signal and write inhibit on power on and off. Meanwhile, software data protection is implemented using the JEDEC-optional Standard algorithm. The 28LV011 is designed for high reliability in the most demanding space applications.

Maxwell Technologies' patented RAD-PAK® packaging technol-ogy incorporates radiation shielding in the microcircuit pack-age.  28LV011 eliminates the need for box shielding while providing the required radiation shielding for a lifetime in orbit or space mission.  In a GEO orbit, RAD-PAK® provides greater than 100 krad (Si) radiation dose tolerance. This product is available with screening up to Class S.

Note:The recommended form of data protection during power on/off is to hold the RESpin to VSS during power up and power down. This may be accompanied by connecting the RES pin
to the CPU reset line. Failure to provide adequate protection during power on/off may result in lost or modified data.
