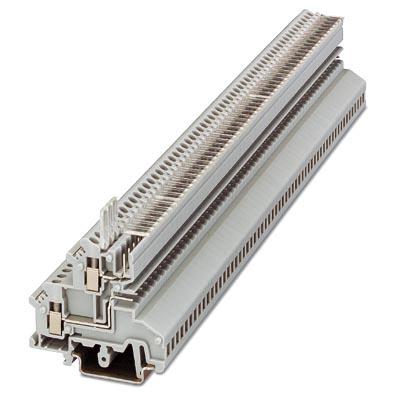

DIN Rail Terminal Blocks UKK 3-MSTBVH-5 08
2770846: DIN Rail Terminal Blocks UKK 3-MSTBVH-5 08
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Type : | Wire to Wire | Number of Positions / Contacts : | 4 |
Wire Gauge Range : | 24-12 | Current Rating : | 12 A |
Voltage Rating : | 250 V |
Technical/Catalog Information | 2770846 |
Vendor | Phoenix Contact |
Category | Connectors |
Color | Gray |
Current - IEC | 12A |
Current - UL | 10A |
Features | - |
Number of Levels | 2 |
Number of Positions | 4 |
Terminal - Width | - |
Termination Style | Plug Receptacles, Screw |
Type | Pluggable |
Voltage - IEC | 250V |
Voltage - UL | 300V |
Wire Gauge or Range - AWG | 12-30 AWG |
Wire Gauge or Range - mm² | 0.2-4mm² |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 2770846 2770846 |
