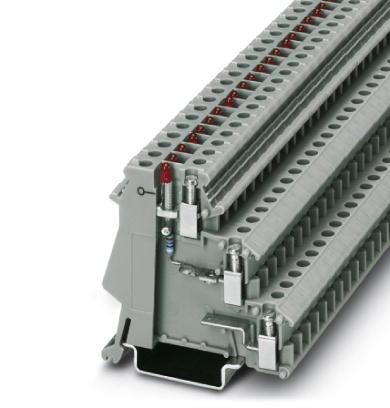

DIN Rail Terminal Blocks DIK 1 5-LA 24RD/O-M
2715856: DIN Rail Terminal Blocks DIK 1 5-LA 24RD/O-M
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Type : | Wire to Wire | Number of Positions / Contacts : | 4 | ||
Wire Gauge Range : | 24-12 | Current Rating : | 26 A | ||
Voltage Rating : | 250 V | Mounting Style : | DIN Rail |
Technical/Catalog Information | 2715856 |
Vendor | Phoenix Contact |
Category | Connectors |
Color | Gray |
Current - IEC | 26A |
Current - UL | 15A |
Features | LED |
Number of Levels | 3; 2 Connected |
Number of Positions | 4 |
Terminal - Width | 6.2mm |
Termination Style | Screw |
Type | Feed Through, Isolated |
Voltage - IEC | 250V |
Voltage - UL | 300V |
Wire Gauge or Range - AWG | 14-30 AWG |
Wire Gauge or Range - mm² | 0.2-4mm² |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 2715856 2715856 |
