26-48-2025, US $ .19-.55 , Molex, 26-48-2025 DataSheet download, circuit diagram from SeekIC.com

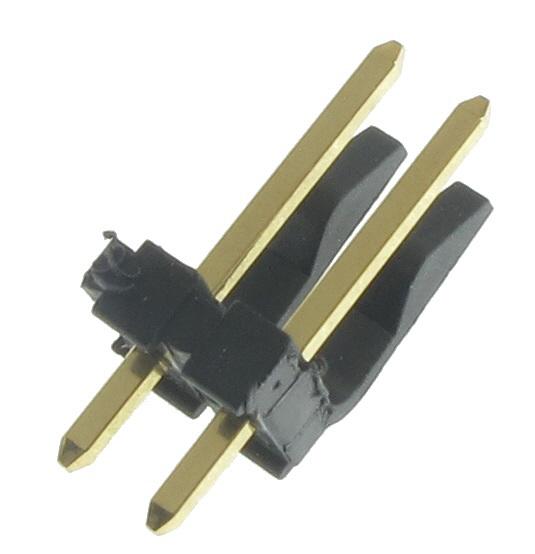

See larger image

SeekIC No. : 002234448 Detail

26-48-2025: Headers & Wire Housings HEADER

26-48-2025 Data Sheet

US $ .19~.55 / Piece | Get Latest Price

Part Number:: 26-48-2025
Mfg:: Molex
Supply Ability:: 5000

Price Break

Qty
0~1
1~100
100~500
500~1000

Unit Price
$.55
$.26
$.21
$.19

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

26-41-4382 evaluate
Fuseholders, Clips, & Hardware SHUNT
26-41-4414 evaluate
Headers & Wire Housings SHUNT
26-48-1011 evaluate
Headers & Wire Housings PCB HEADER 4P

Product Details

Quick Details

Product Type :	Headers - Breakaway	Series :	KK
Pitch :	3.96 mm	Number of Rows :	1
Mounting Style :	Through Hole	Contact Plating :	Gold

Description

Contact Gender :
Number of Positions / Contacts :
Number of Rows : 1
Contact Plating : Gold
Mounting Style : Through Hole
Series : KK
Pitch : 3.96 mm
Product Type : Headers - Breakaway

Parameters:

Technical/Catalog Information	26-48-2025
Vendor	Molex/Waldom Electronics Corp (VA)
Category	Connectors
Color	Black
Connector Type	Header, Unshrouded, Breakaway
Contact Finish	Gold
Contact Mating Length	0.450" (11.43mm)
Features	-
Mounting Type	Through Hole
Number of Contacts Loaded	All
Number of Rows	1
Pitch	0.156" (3.96mm)
Row Spacing	-
Packaging	Bulk
Fastening Type	Friction Lock
Termination	Solder
Contact Finish Thickness	20in (0.51m)
Number of Positions	2
Contact Type	Male Pin
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	26 48 2025 26482025 WM5200 ND WM5200ND WM5200
