Features:

• Single supply with operation down to 2.5V
• Completely implements DDC1TM/DDC2TM
interface for monitor identification, including recovery to DDC1
• Pin and function compatible with 24LC21
• Low power CMOS technology
- 1 mA typical active current
- 10A standby current typical at 5.5V
• 2-wire serial interface bus, I2CTMcompatible
• 100 kHz (2.5V) and 400 kHz (5V) compatibility
• Self-timed write cycle (including auto-erase)
• Page-write buffer for up to eight bytes
• 10,000,000 erase/write cycles guaranteed
• Data retention > 200 years
• ESD Protection > 4000V
• 8-pin PDIP and SOIC package
• Available for extended temperature ranges
- Commercial (C): 0°C to +70°C
- Industrial (I): -40°C to +85°C




Pinout

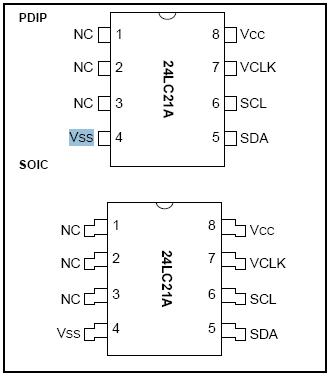

Connection Diagram




Specifications

VCC........................................................................7.0V
All inputs and outputs w.r.t. VSS.... -0.6V to VCC +1.0V
Storage temperature ..........................-65°C to +150°C
Ambient temp. with power applied .....-65°C to +125°C
Soldering temperature of leads (10 seconds) ..+300°C
ESD protection on all pins..................................... 4 kV

Parameter Name Value
Density 1K bits (x8)
Max. Clock Freq. 400 kHz
Page Size (bytes) 8
Endurance 1,000,000
Op. Volt Range (V) 2.5 to 5.5
Temp Range (°C) -40°C to +85°C





Description

The Microchip Technology Inc. 24LC21A is a 128 x 8-bit dual-mode Electrically Erasable PROM. 24LC21A is designed for use in applications requiring storage and serial transmission of configuration and control information. Two modes of operation have been implemented:Transmit-Only Mode and Bi-directional Mode.Upon power-up, the device will be in the Transmit-Only Mode, sending a serial bit stream of the memory array from 00h to 7Fh, clocked by the VCLK pin.

A valid high to low transition on the SCL pin will cause the device to enter the transition mode, and look for a valid control byte on the I2C bus. If 24LC21A detects a valid control byte from the master, it will switch into Bi-directional Mode, with byte selectable read/write capability of the memory array using SCL. If no control byte is received, the device will revert to the Transmit-Only Mode after it receives 128 consecutive VCLK pulses while the SCL pin is idle. The 24LC21A is available in a standard 8-pin PDIP and SOIC package in both commercial and industrial temperature ranges.
