24LC21

Features:

• Single supply with operation down to 2.5V
• Completely implements DDC1™/DDC2™interface for monitor identification
• Low power CMOS technology
  - 1 mA active current typical
  - 10 A standby current typical at 5.5V
• 2-wire serial interface bus, I²C ™compatible
• Self-timed write cycle (including auto-erase)
• Page-write buffer for up to 8 bytes
• 100 kHz (2.5V) and 400 kHz (5V) compatibility
• Factory programming (QTP) available
• 1,000,000 erase/write cycles guaranteed
• Data retention > 200 years
• 8-pin PDIP and SOIC package
• Available for extended temperature ranges
  - Commercial (C): 0°C to +70°C
  - Industrial (I): -40°C to +85°C

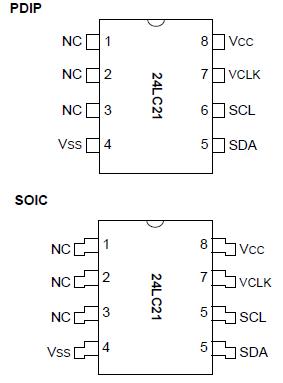

Pinout




Specifications

V_CC...................................................................................... 7.0V
All inputs and outputs w.r.t. V_SS ......................................... -0.6V to V_CC+1.0V
Storage temperature .......................................................... -65°C to +150°C
Ambient temp. with power applied ..................................... -65°C to +125°C
Soldering temperature of leads (10 seconds) .................... +300°C
ESD protection on all pins .................................................. 4 kV

*Notice: Stresses above those listed under "Maximum ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.


Description

The Microchip Technology Inc. 24LC21 is a 128 x 8 bit Electrically Erasable PROM. This device is designed for use in applications requiring storage and serial transmission of configuration and control information. Two modes of operation have been implemented: Transmit Only Mode and Bi-Directional Mode. Upon power-up, 24LC21 will be in the Transmit Only Mode, sending a serial bit stream of the entire memory array contents, clocked by the VCLK pin. A valid high to low transition on the SCL pin will cause the device to enter the Bi-Directional Mode, with byte selectable read/write capability of the memory array. The 24LC21 is available in a standard 8-pin PDIP and SOIC package in both commercial and industrial temperature ranges.
