Product Details

Description



Features:

• Single supply with operation down to 2.5V
• Low power CMOS technology
- 1 mA active current typical
- 10A standby current typical at 5.5V
- 5A standby current typical at 3.0V
• Organized as two or four blocks of 256 bytes
(2 x 256 x 8) and (4 x 256 x 8)
• 2-wire serial interface bus, I2CTM compatible
• Schmitt trigger, filtered inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz (2.5V) and 400 kHz (5V) compatibility
• Self-timed write cycle (including auto-erase)
• Page-write buffer for up to 16 bytes
• 2 ms typical write cycle time for page-write
• Hardware write protect for entire memory
• Can be operated as a serial ROM
• Factory programming (QTP) available
• ESD protection > 4,000V
• 1,000,000 erase/write cycles guaranteed
• Data retention > 200 years
• 8-pin DIP, 8-lead or 14-lead SOIC packages
• Available for extended temperature ranges
- Commercial (C): 0to +70
- Industrial (I): -40to +85

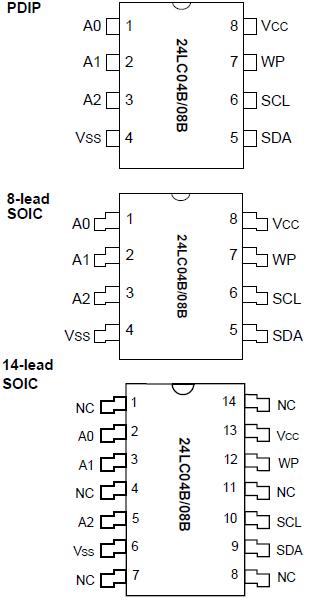

Pinout

Connection Diagram




Specifications

Parameter Name Value
Density 8K bits (x8)
Max. Clock Freq. 400 kHz
Page Size (bytes) 16
Write Protect Whole Array
Endurance 1,000,000
Op. Volt Range (V) 2.5 to 5.5
Temp Range (°C) -40°C to +125°C


VCC...................................................................................7.0V
All inputs and outputs w.r.t. VSS ..............-0.3V to VCC + 1.0V
Storage temperature ....................................-65°C to +150
Ambient temp. with power applied ...............-65°C to +125
Soldering temperature of leads (10 seconds) ............. +300
ESD protection on all pins...............................................4 kV






Description

The Microchip Technology Inc. 24AA08/24LC08B(24XX08*) is a 8 Kbit Electrically Erasable PROM. 24AA08/24LC08B is organized as four blocks of 256 x 8-bitmemory with a 2-wire serial interface. Low-voltagedesign permits operation down to 1.7V, with standbyand active currents of only 1 A and 1 mA,respectively. The 24AA08/24LC08B also has a page writecapability for up to 16 bytes of data. The 24XX08 isavailable in the standard 8-pin PDIP, surface mountSOIC, TSSOP, 2x3 DFN, 2x3 TDFN and MSOPpackages, and is also available in the 5-lead SOT-23package. All packages are Pb-free and RoHScompliant.

The Microchip Technology Inc. 24LC04B/08B is a 4K or 8K bit Electrically Erasable PROM. The device is organized as two or four blocks of 256 x 8-bit memory with a 2-wire serial interface. Low voltage design permits operation down to 2.5 volts with typical standby and active currents of only 5A and 1 mA respectively. The 24LC04B/08B also has a page-write capability for up to 16 bytes of data. The 24LC04B/08B is available in the standard 8-pin DIP and both 8-lead and 14-lead surface mount SOIC packages.
