24C32A

Features:

• Voltage operating range: 4.5V to 5.5V
   - Maximum write current 3 mA at 5.5V
   - Standby current 1µA typical at 5.0V
• 2-wire serial interface bus, I²C^TM compatible
• 100 kHz and 400 kHz compatibility
• Self-timed ERASE and WRITE cycles
• Power on/off data protection circuitry
• Hardware write protect
• 1,000,000 Erase/Write cycles guaranteed
• 32-byte page or byte write modes available
• Schmitt trigger filtered inputs for noise suppression
• Output slope control to eliminate ground bounce
• 2 ms typical write cycle time, byte or page
• Up to eight devices may be connected to the
   same bus for up to 256K bits total memory
• Electrostatic discharge protection > 4000V
• Data retention > 200 years
• 8-pin PDIP and SOIC packages
• Temperature ranges
   - Commercial (C):         0 to +70
   - Industrial (I):          -40 to +85
   - Automotive (E):      -40 to +125

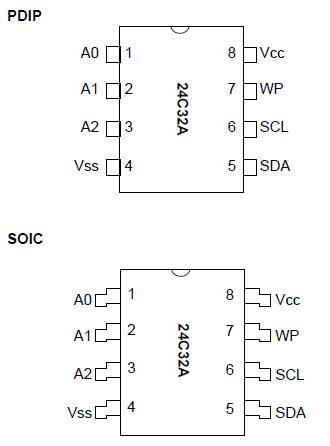

Pinout




Specifications

Vcc...................................................................................7.0V
All inputs and outputs w.r.t. Vss..................-0.6V to Vcc+1.0V
Storage temperature.......................................-65 to 150
Ambient temperature under bias.....................-65  to 125
Soldering temperature of leads (10 seconds).............+300
ESD protection on all pins..............................................4kV



Description

The Microchip Technology Inc. 24C32A is a 4K x 8 (32K bit) Serial Electrically Erasable PROM. It has been developed for advanced, low power applications such as personal communications or data acquisition. The 24C32A also has a page-write capability of up to 32 bytes of data. The 24C32A is capable of both random and sequential reads up to the 32K boundary. Functional address lines allow up to eight 24C32A devices on the same bus, for up to 256K bits address space. Advanced CMOS technology and broad voltage range make this device ideal for low-power/low-voltage, nonvolatile code and data applications. The 24C32A is available in the standard 8-pin plastic DIP and both 150 mil and 200 mil SOIC packaging.
