24C04A

Features:

• Low power CMOS technology
• Hardware write protect
• Two wire serial interface bus, I²C^TM compatible
• 5.0V only operation
• Self-timed write cycle (including auto-erase)
• Page-write buffer
• 1ms write cycle time for single byte
• 1,000,000 Erase/Write cycles guaranteed
• Data retention >200 years
• 8-pin DIP/SOIC packages
• Available for extended temperature ranges
   - Commercial (C):              0 to +70
   - Industrial (I):               -40 to +85
   - Automotive (E):          -40 to +125

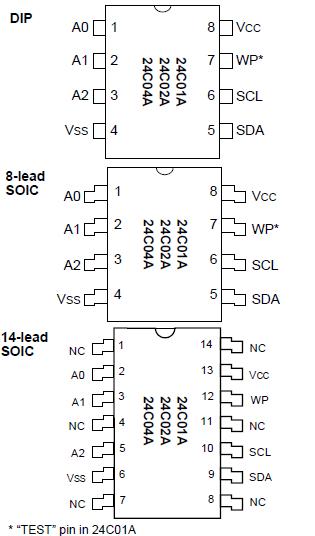

Pinout




Specifications

V_CC...................................................................................7.0V
All inputs and outputs w.r.t. V_SS ...............-0.6V to V_CC +1.0V
Storage temperature ..................................... -65 to +150
Ambient temp. with power applied ................ -65 to +125
Soldering temperature of leads (10 seconds) ............. +300
ESD protection on all pins.................................................4 kV


Description

The Microchip Technology Inc. 24C01A/02A/04A is a 1K/2K/4K bit Electrically Erasable PROM. The deviceis organized as shown, with a standard two wire serial interface. Advanced CMOS technology allows a significant reduction in power over NMOS serial devices. A special feature in the 24C02A and 24C04A provides hardware write protection for the upper half of the block. The 24C01A and 24C02A have a page write capability of two bytes and the 24C04A has a page length of eight bytes. Up to eight 24C01A or 24C02A devices and up to four 24C04A devices may be connected to the same two wire bus.
