24AA32A

Features:

* Single supply with operation down to 1.8V
- Maximum write current 3 mA at 6.0V
- Standby current 1 m A max at 1.8V
* 2-wire serial interface bus, I²C compatible
* 100 kHz (1.8V) and 400 kHz (5V) compatibility
* Self-timed ERASE and WRITE cycles
* Power on/off data protection circuitry
* Hardware write protect
* 1,000,000 Erase/Write cycles guaranteed
* 32 byte page or byte write modes available
* Schmitt trigger inputs for noise suppression
* Output slope control to eliminate ground bounce
* 2 ms typical write cycle time, byte or page
* Up to eight devices may be connected to thesame bus for up to 256K bits total memory
* Electrostatic discharge protection > 4000V
* Data retention > 200 years
* 8-pin PDIP and SOIC packages
* Temperature ranges
- Commercial (C): 0 C to +70 C

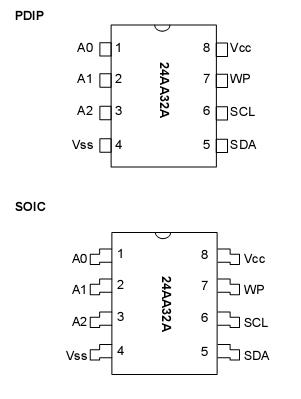

Pinout






Specifications

V_CC...................................................................................7.0V
All inputs and outputs w.r.t. V_SS...............-0.6V to VCC +1.0V
Storage temperature.....................................-65 to +150
Ambient temp. with power applied................-65 to +125
Soldering temperature of leads (10 seconds).............+300
ESD protection on all pins..................................................+ 4 kV
*Notice: Stresses above those listed under "Maximum Ratings"may cause permanent damage to the device. This is a stress rat-ing only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Parameter Name	Value
Density	32K bits (x8)
Max. Clock Freq.	400 kHz
Page Size (bytes)	32
Write Protect	Whole Array
Endurance	1,000,000
Op. Volt Range (V)	1.7 to 5.5
Temp Range (°C)	-40°C to +85°C

Description

The Microchip Technology Inc. 24AA32A is a 4K x 8 (32K bit) Serial Electrically Erasable PROM capable of operation across a broad voltage range (1.8V to 6.0V). It has been developed for advanced, low power applica-tions such as personal communications or data acqui-sition. The 24AA32A also has a page-write capability of up to 32 bytes of data. The 24AA32A is capable of both random and sequential reads up to the 32K boundary.

Functional address lines allow up to eight 24AA32A devices on the same bus, for up to 256K bits address space.Advanced CMOS technology and broad voltage range make this device ideal for low-power/low-voltage,nonvolatile code and data applications. The 24AA32A is available in the standard 8-pin plastic DIP and both 150 mil and 200 mil SOIC packages.
