24AA32

Features:

* Voltage operating range:  1.8V to 6.0V
   - Peak write current 3 mA at 6.0V
   - Maximum read current 150 m A at 6.0V
   - Standby current 1 m A typical
* Industry standard two-wire bus protocol, I² C compatible
   - Including 100 kHz (1.8V) and 400 kHz (5V) modes
* Self-timed ERASE and WRITE cycles
* Power on/off data protection circuitry
* Endurance:
   - 10,000,000 Erase/Write (E/W) cycles guaran-teed for High Endurance Block
   - 1,000,000 E/W cycles guaranteed for Stan-dard Endurance Block
* 8 byte page, or byte modes available
* 1 page x 8 line input cache (64 bytes) for fast write loads
* Schmitt trigger, filtered inputs for noise suppression
* Output slope control to eliminate ground bounce
* 2 ms typical write cycle time, byte or page
* Factory programming (QTP) available
* Up to 8 devices may be connected to the same bus for up to 256K bits total memory
* Electrostatic discharge protection > 4000V
* Data retention > 200 years
* 8-pin PDIP/SOIC packages
*  Temperature ranges
   - Commercial (C): 0 C to +70 C

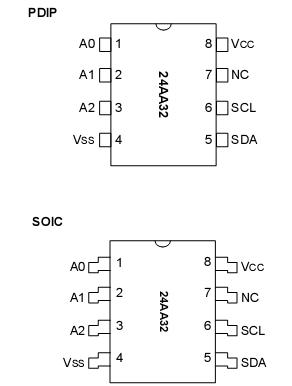

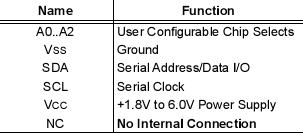

Pinout




Specifications

VCC..................................................................................7.0V
All inputs and outputs w.r.t. VSS...............-0.6V to VCC +1.0V
Storage temperature.....................................-65 to +150
Ambient temp. with power applied................-65 to +125
Soldering temperature of leads (10 seconds).............+300
ESD protection on all pins..................................................+  4 kV
*Notice: Stresses above those listed under "Maximum Ratings"may cause permanent damage to the device.  This is a stress rat-ing only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied.  Exposure to maximum rating conditions for extended periods may affect device reliability.


Description

The Microchip Technology Inc. 24AA32 is a 4K x 8 (32K bit) Serial Electrically Erasable PROM capable of oper-ation across a broad voltage range (1.8V to 6.0V). This device has been developed for advanced, low power applications such as personal communications or data acquisition. The 24AA32 features an input cache for fast write loads with a capacity of eight 8-byte pages, or 64 bytes. It also features a fixed 4K-bit block of ultra- high endurance memory for data that changes fre- quently. The 24AA32 is capable of both random and sequential reads up to the 32K boundary. Functional address lines allow up to 8 - 24AA32 devices on the same bus, for up to 256K bits address space. dvanced CMOS technology and broad voltage range make this device ideal for low-power/low voltage, nonvolatile code and data applications. The 24AA32 is available in the standard 8-pin plastic DIP and 8-pin surface mount SOIC package.
