Features:

• Single supply with operation down to 1.8V
• Low-power CMOS technology
- 1 mA active current typical
- 1A standby current typical (I-temp)
• Organized as 1 block of 256 bytes (1 x 256 x 8)
• 2-wire serial interface bus, I²C™ compatible
• Schmitt Trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz (24AA02) and 400 kHz (24LC02B)
compatibility
• Self-timed write cycle (including auto-erase)
• Page write buffer for up to 8 bytes
• 2 ms typical write cycle time for page write
• Hardware write-protect for entire memory
• Can be operated as a serial ROM
• Factory programming (QTP) available
• ESD protection > 4,000V
• 1,000,000 erase/write cycles
• Data retention > 200 years
• 8-lead PDIP, SOIC, TSSOP and MSOP packages
• 5-lead SOT-23 package
• Pb-free finish available
• Available for extended temperature ranges:
- Industrial (I): -40 to +85
- Automotive (E): -40 to +125

Pinout

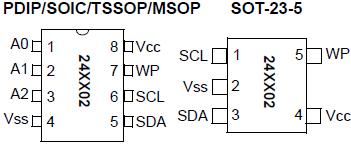

Connection Diagram

Specifications

Parameter Name	Value
Density	2K bits (x8)
Max. Clock Freq.	400 kHz
Page Size (bytes)	8
Write Protect	Whole Array
Endurance	1,000,000
Op. Volt Range (V)	1.7 to 5.5
Temp Range (°C)	-40°C to +85°C

V_CC............................................................................................................................................................................6.5V
All inputs and outputs w.r.t. V_SS ....................................................................................................... -0.3V to VCC +1.0V
Storage temperature ............................................................................................................................65°C to +150°C
Ambient temperature with power applied............................................................................................-65°C to +125°C
ESD protection on all pins ...................................................................................................................................... 4 kV

Description

The Microchip Technology Inc. 24AA02/24LC02B (24XX02*) is a 2 Kbit Electrically Erasable PROM. The device 24AA02/24LC02B (24XX02*) is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 A and 1 mA, respectively. The 24XX02 also has a page write capability for up to 8 bytes of data. The 24XX02 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN and MSOP packages and is also available in the 5-lead SOT-23 package.

The Microchip Technology Inc. 24AA02/24LC02B (24XX02*) is a 2 Kbit Electrically Erasable PROM. The device is organized as one block of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.8V, with standby and active currents of only 1 A and 1 mA, respectively. The 24XX02 also has a page write capability for up to 8 bytes of data. The 24XX02 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP and MSOP packages and is also available in the 5-lead SOT-23 package.
