23C16380

Features:

* Pin compatible with NOR Flash Memory
* Word organization2,097,152 words by 8 bits (BYTE mode) 1,048,576 words by 16 bits (WORD mode)
* Page access mode BYTE mode :8 byte random page access (PD23C16340) 16 byte random page access
   (PD23C16380)  WORD mode :4 word random page access
   (PD23C16340) 8 word random page access (PD23C16380)
* Operating supply voltage : VCC = 2.7 V to 3.6 V

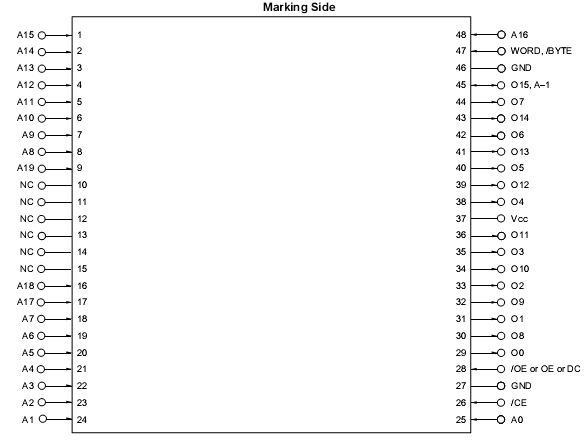

Pinout




Specifications

Parameter	Symbol	Condition	Rating	Unit
Supply voltage	VCC		0.3 to +4.6	V
Input voltage	VI		0.3 to VCC+0.3	V
Output voltage	VO		0.3 to VCC+0.3	V
Operating ambient temperature	TA		10 to +70	°C
Storage temperature	Tstg		65 to +150	°C

Description

The PD23C16340 and PD23C16380 are 16,777,216 bits mask-programmable ROM. The word organization is selectable (BYTE mode : 2,097,152 words by 8 bits, WORD mode : 1,048,576 words by 16 bits).

The active levels of OE (Output Enable Input) can be selected with mask-option.

The PD23C16340 and PD23C16380 are packed in 48-pin PLASTIC TSOP(I) and 48-pin TAPE FBGA.
