22R686C, US $ .47-.5 , Murata Power Solutions, 22R686C DataSheet download, circuit diagram from SeekIC.com

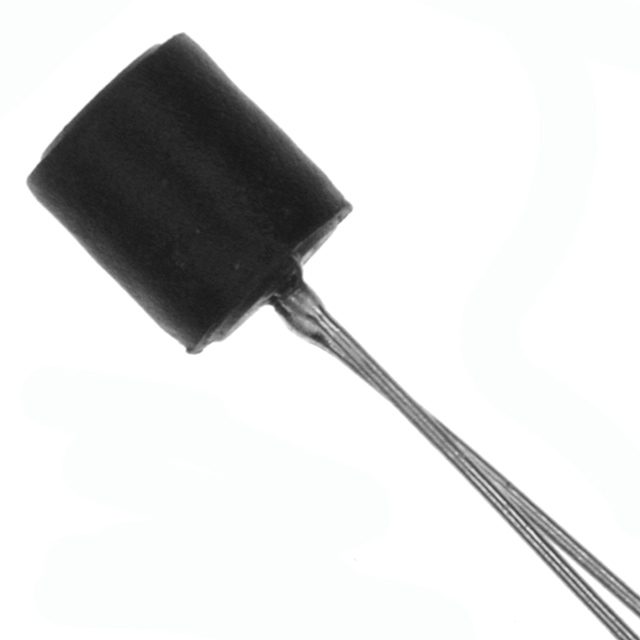

See larger image

SeekIC No. : 001176626 Detail

22R686C: Power Inductors 68mH 0.018A 0.2MHz Radial Lead

22R686C Data Sheet

US $ .47~.5 / Piece | Get Latest Price

Part Number:: 22R686C
Mfg:: Murata Power Solutions
Supply Ability:: 5000

Price Break

Qty
0~1
1~5
5~10
10~25

Unit Price
$.5
$.49
$.48
$.47

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

22R683 evaluate
Power Inductors MINI RAD LD 68uH
22R683C evaluate
US $.33 - .35 / Piece

Power Inductors 68uH 0.77A 10.6MHz Radial Lead
22R683MC evaluate
US $.47 - .51 / Piece

Power Inductors 68uH 0.84A 0.28ohm Bobbin Wound SMT

Product Details

Quick Details

Inductance :	68 mH	Tolerance :	10 %
Maximum DC Current :	0.018 Amp	Maximum DC Resistance :	242 Ohms
Operating Temperature Range :	- 25 C to + 70 C	Self Resonant Frequency :	0.2 MHz
Q Minimum :	70	Dimensions :	7.2 mm Dia. x 8.5 mm L x 8.5 mm H
Termination Style :	Radial

Description

Shielding :
Package / Case :
Tolerance : 10 %
Termination Style : Radial
Inductance : 68 mH
Maximum DC Resistance : 242 Ohms
Q Minimum : 70
Operating Temperature Range : - 25 C to + 70 C
Maximum DC Current : 0.018 Amp
Self Resonant Frequency : 0.2 MHz
Dimensions : 7.2 mm Dia. x 8.5 mm L x 8.5 mm H

Parameters:

Technical/Catalog Information	22R686C
Vendor	Murata Power Solutions Inc
Category	Inductors, Coils, Chokes
Inductance	68mH
Tolerance	±10%
Package / Case	Radial
Packaging	Bag
Type	-
Current	18mA
Mounting Type	Through Hole
Q @ Freq	70 @ 50kHz
Self Resonant Freq	200kHz
DC Resistance (DCR)	242.0 Ohm Max
Shielding	-
Applications	General Purpose
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	22R686C 22R686C 811 1286 ND 8111286ND 811-1286
