224ATLV

Features: • Data modes CCITT V.22 bis (2400 bps), V.22 (1200 bps) Bell 212A (1200 bps) and 103 (300 bps) Enhanced AT commands• Group 3 fax modes V.29 (9600/7200 bps) transmit V.27 ter (4800/2400 bps) transmit and receive V.21 Channel 2 (300 bps) transmit and receive• EIA-57...

product image

224ATLV Picture
See larger image
SeekIC No. : 004215716 Detail

224ATLV: Features: • Data modes CCITT V.22 bis (2400 bps), V.22 (1200 bps) Bell 212A (1200 bps) and 103 (300 bps) Enhanced AT commands• Group 3 fax modes V.29 (9600/7200 bps) transmit V.27 t...

224ATLV Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
224ATLV
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Data modes
   CCITT V.22 bis (2400 bps), V.22 (1200 bps)
   Bell 212A (1200 bps) and 103 (300 bps)
   Enhanced AT commands
• Group 3 fax modes
   V.29 (9600/7200 bps) transmit
   V.27 ter (4800/2400 bps) transmit and receive
   V.21 Channel 2 (300 bps) transmit and receive
• EIA-578 Service Class 1 commands
• V.42/MNP2-4 and V.42 bis/MNP 5 can be supported through host software without additional hardware
• Data/fax discriminator and auto answering
• Communications software compatible
• Integrated call progress and dialing
• No external microcomputer or memory required
• Parallel or serial asynchronous DTE interface
• A/A1 relay control
• NVRAM interface allows storage of two user configurations and four 36-digit dial strings
• Automatic adaptive/fixed compromise equalization
• Programmable sleep mode and wake-up
• Full-duplex data mode test capabilities: Analog loop, local digital loop, and remote digital loop
• Half-duplex fax mode test capabilities
• Automatic format/speed sensing
• Low power consumption (typical)
   Operating: 100 mW
   Sleep-Idle: 25 mW
   Sleep-Stop: 5 mW
• Single +5 V power supply or Dual + 3.3 VDD and + 5 VAA power supplies
• Package options:
   68-pin plastic leaded chip carrier (PLCC)
   100-pin plastic quad flat pack (PQFP)

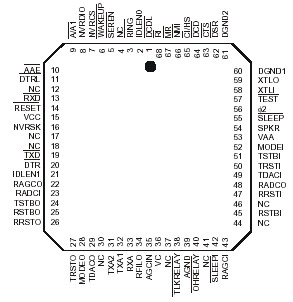

Pinout

Connection Diagram


Specifications

Parameter Symbol Limits Units
Supply Voltage VDD 0.5 to + 7.0 V
Input Voltage VIN 0.5 to VCC + 0.5 V
Analog Inputs VIN 0.3 to + 5 VAA + 0.3 V
Voltage Applied to Outputs in High Z State VHZ 0.5 to + 5 VDD + 0.5 V
DC Input Clamp Current IIK 20 mA
DC Output Clamp Current IOK 20 mA
Static Discharge Voltage (@ 25) VESD 3000 V
Latch-Up Current (@ 25) ITRIG 200 mA
Operating Temperature Range TA 0 to + 70
Storage Temperature Range TSTG 40 to + 80



Description

The new Conexant RC224ATL utilizes a new integrated data pump/controller to allow the device to directly connect to host processors that are 3.3 V I/O capable. The codec used in the new part is the same as the codec used in the existing RC224ATL. The new device is form, fit, and function compatible with the existing device. This means there are no hardware and software differences between the existing and the new part, with one exception. The 3.3 V I/O capable part incorporates 3.3 V compatible digital I/O buffers, hence requiring 3.3 V digital supply instead of 5 V digital supply.

In addition, unlike the current version of RC224ATL, the new part provides both data and fax capabilities.

Data modes, controlled by an industry standard 2400 AT command set, can transmit and receive up to 2400 bps.

Fax modes, controlled by a built-in EIA-578 Class 1 command interface, provide Group 3 transmit and receive functions.
