1SR156-400

Features: Small power mold type. (PMDS) High reliability. High switching speed.ApplicationFor fast rectifierSpecifications Parameter Symbol Limits Unit Absolute peak reverse voltage VRSM 500 V Peak reverse voltage VRM 400 V Mean rectifying current*1 IO 1 A Peak forward...

product image

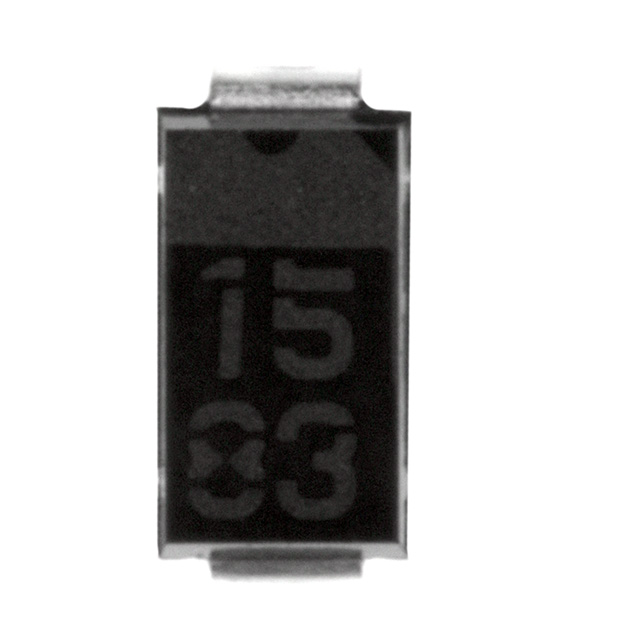

1SR156-400 Picture
See larger image
SeekIC No. : 004214521 Detail

1SR156-400: Features: Small power mold type. (PMDS) High reliability. High switching speed.ApplicationFor fast rectifierSpecifications Parameter Symbol Limits Unit Absolute peak reverse voltage VRSM...

1SR156-400 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
1SR156-400
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Small power mold type. (PMDS)
High reliability.
High switching speed.





Application

For fast rectifier




Specifications

Connection Diagram

Parameter Symbol Limits Unit
Absolute peak reverse voltage VRSM 500 V
Peak reverse voltage VRM 400 V

Mean rectifying current*1		 IO 1 A

Peak forward surge curren*2		 IFSM 20 A
Junction temperat TJ 150 °C
Storage temperature TSTG -55to+150 °C





Description

The 1SR156-400 is designed as one kind of rectifier diode device that can be used in fast rectifier applications. And the construction of this device is silicon diffused junction. Features of the 1SR156-400 are:(1)Small power mold type (PMDS); (2)High reliability; (3)High switching speed.

The absolute maximum ratings of the 1SR156-400 can be summarized as:(1)reverse voltage (repetitive peak): 500 V;(2)reverse voltage (DC): 400 V;(3)average rectified forward current: 1 A;(4)Forward current surge peak (60Hz-1cyc): 20 A;(5)junction temperature: 150 ;(6)storage temperature: -55 to +150 .

The electrical characteristics of 1SR156-400 can be summarized as:(1)Forward voltage: 1.3 V;(2)reverse current (VR = 400V): 10 uA;(3)reverse recovery time (IF=10 mA,IR=10 mA,Irr=1 mA): 0.4 us. If you want to know more information such as the electrical characteristics about 1SR156-400, please download the datasheet in www.seekic.com or www.chinaicmart.com.
