1SR154-600

Features: Small surface mounting type. (PMDS)Outstanding reverse surge capability.High reliability.ApplicationGeneral purpose rectificationSurge absorptionPinoutSpecifications Parameter Symbol Limits Unit Absolute peak reverse voltage 1SR154-400 VRSM 500 V 1SR154-600 750 Peak...

product image

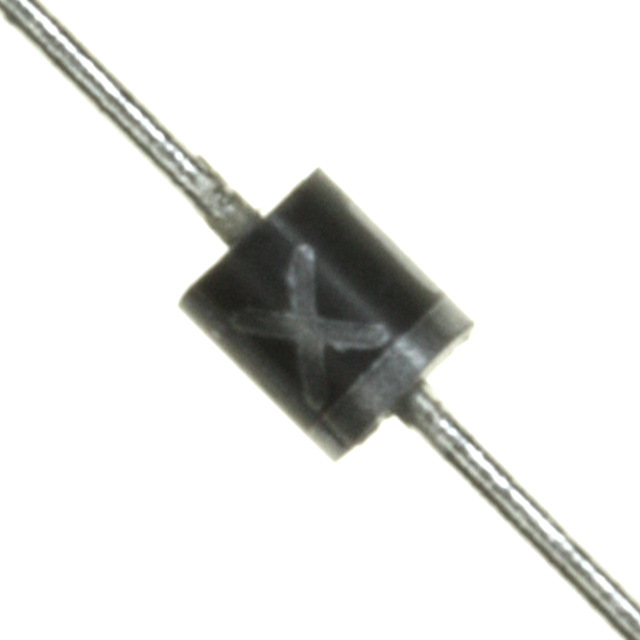

1SR154-600 Picture
See larger image
SeekIC No. : 004214520 Detail

1SR154-600: Features: Small surface mounting type. (PMDS)Outstanding reverse surge capability.High reliability.ApplicationGeneral purpose rectificationSurge absorptionPinoutSpecifications Parameter Symbol...

1SR154-600 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
1SR154-600
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Small surface mounting type. (PMDS)
Outstanding reverse surge capability.
High reliability.




Application

General purpose rectification
Surge absorption




Pinout






Specifications

Parameter Symbol Limits Unit
Absolute peak reverse voltage 1SR154-400 VRSM 500 V
1SR154-600 750
Peak reverse voltage 1SR154-400 VRM 400 V
1SR154-600 600

Mean rectifying current*1		 IO 1.0 A

Peak forward surge curren*2		 IFSM 30 A
Junction temperat TJ 150 °C
Storage temperature TSTG -55~+150 °C





Description

The 1SR154-600 is designed as one kind of rectifier diode device that can be used in general purpose rectification and surge absorption applications. And the construction of this device is silicon diffused junction. Features of the 1SR156-600 are:(1)Small power mold type (PMDS); (2)High reliability; (3)High switching speed.

The absolute maximum ratings of the 1SR154-600 can be summarized as:(1)reverse voltage (repetitive peak): 500 V;(2)reverse voltage (DC): 400 V;(3)average rectified forward current: 1.0 A;(4)Forward current surge peak (60Hz-1cyc): 30 A;(5)junction temperature: 150 ;(6)storage temperature: -55 to +150 .

The electrical characteristics of 1SR154-600 can be summarized as:(1)Forward voltage: 1.1 V;(2)reverse current (VR = 400V): 10 uA;(3)reverse recovery time (IF=10 mA,IR=10 mA,Irr=1 mA): 0.4 us. If you want to know more information such as the electrical characteristics about the 1SR154-600, please download the datasheet in www.seekic.com or www.chinaicmart.com.
