1PS79SB70

Features: · Low forward voltage· High breakdown voltage· Guard ring protected· Ultra small plastic SMD package· Low capacitance.Application· Ultra high-speed switching· Voltage clamping· Protection circuits· Blocking diodes.Specifications SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VR ...

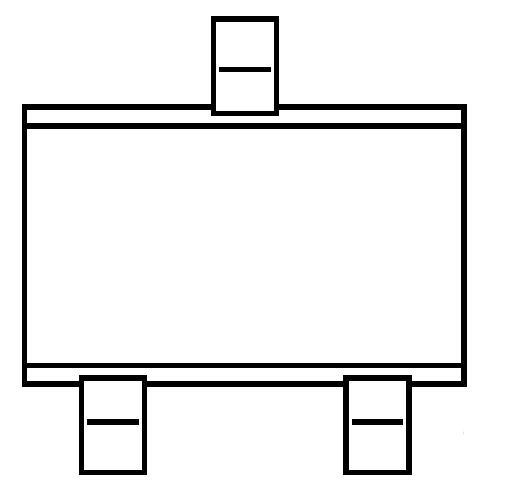

product image

1PS79SB70 Picture
See larger image
SeekIC No. : 004214076 Detail

1PS79SB70: Features: · Low forward voltage· High breakdown voltage· Guard ring protected· Ultra small plastic SMD package· Low capacitance.Application· Ultra high-speed switching· Voltage clamping· Protection ...

1PS79SB70 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
1PS79SB70
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low forward voltage
· High breakdown voltage
· Guard ring protected
· Ultra small plastic SMD package
· Low capacitance.




Application

· Ultra high-speed switching
· Voltage clamping
· Protection circuits
· Blocking diodes.




Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VR continuous reverse voltage - 70 V
IF continuous forward current - 70 mA
IFRM repetitive peak forward current tp 1 s; d 0.5 - 70 mA
IFSM non-repetitive peak forward current tp < 10 ms - 100 mA
Tstg storage temperature -65 +150 °C
Tj junction temperature - 150 °C
Tamb operating ambient temperature -65 +150 °C





Description

Planar Schottky barrier diode of the 1PS79SB70 encapsulated in a SC-79 ultra small plastic SMDpackage.
