1PMT5920BT1G

Zener Diodes 6.2V 3.2W Powermite

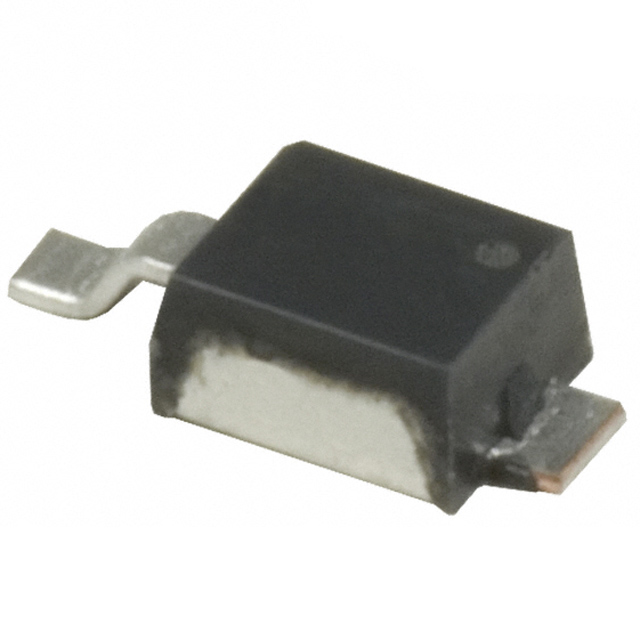

product image

1PMT5920BT1G Picture
See larger image
SeekIC No. : 00268339 Detail

1PMT5920BT1G: Zener Diodes 6.2V 3.2W Powermite

1PMT5920BT1G Data Sheet

floor Price/Ceiling Price

US $ .13~.28 / Piece | Get Latest Price
Part Number:
1PMT5920BT1G
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~500
  • Unit Price
  • $.28
  • $.23
  • $.16
  • $.13
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Zener Voltage : 6.2 V Voltage Tolerance : 5 %
Zener Current : 0.2 A Power Dissipation : 500 mW
Maximum Reverse Leakage Current : 5 uA Maximum Zener Impedance : 2 Ohms
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : Power Mite Packaging : Reel

Description

Voltage Temperature Coefficient :
Voltage Tolerance : 5 %
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Maximum Reverse Leakage Current : 5 uA
Zener Voltage : 6.2 V
Power Dissipation : 500 mW
Maximum Zener Impedance : 2 Ohms
Zener Current : 0.2 A
Package / Case : Power Mite


Parameters:

Technical/Catalog Information1PMT5920BT1G
VendorON Semiconductor (VA)
CategoryDiscrete Semiconductor Products
Voltage - Zener (Nom) (Vz)6.2V
Power - Max3.2W
Impedance (Max) (Zzt)2 Ohm
Voltage - Forward (Vf) (Max) @ If1.25V @ 200mA
Current - Reverse Leakage @ Vr5A @ 4V
Tolerance-
Mounting TypeSurface Mount
Package / CasePowermite?
PackagingCut Tape (CT)
Operating Temperature-55°C ~ 150°C
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 1PMT5920BT1G
1PMT5920BT1G
1PMT5920BT1GOSCT ND
1PMT5920BT1GOSCTND
1PMT5920BT1GOSCT
