1N914-TP, US $ .02-.13 , Micro Commercial Components (MCC), 1N914-TP DataSheet download, circuit diagram from SeekIC.com

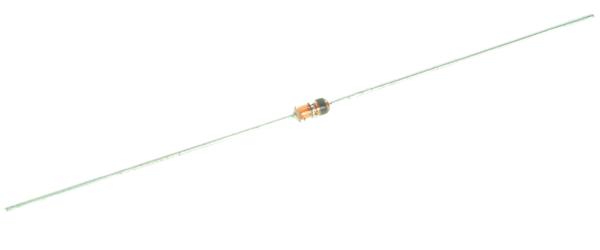

See larger image

SeekIC No. : 00137377 Detail

1N914-TP: Diodes (General Purpose, Power, Switching) 100V 200mA 4pF

1N914-TP Data Sheet

US $ .02~.13 / Piece | Get Latest Price

Part Number:: 1N914-TP
Mfg:: Micro Commercial Components (MCC)
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.13
$.08
$.02
$.02

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1N914 evaluate
US $.02 - .04 / Piece

Diodes (General Purpose, Power, Switching) 100V Io/150mA
1N914_Q evaluate
Rectifiers 100V 4.0ns Diode Single Junction
1N914_S00Z evaluate
US $.02 - .05 / Piece

Rectifiers Hi Conductance Fast

Product Details

Quick Details

Product :	Switching Diodes	Peak Reverse Voltage :	100 V
Forward Continuous Current :	200 mA	Recovery Time :	4 ns
Maximum Reverse Leakage Current :	25 nA	Maximum Power Dissipation :	500 mW
Operating Temperature Range :	- 55 C to + 125 C	Package / Case :	DO-35
Packaging :	Reel

Description

Max Surge Current :
Configuration :
Forward Voltage Drop :
Product : Switching Diodes
Packaging : Reel
Operating Temperature Range : - 55 C to + 125 C
Peak Reverse Voltage : 100 V
Recovery Time : 4 ns
Maximum Power Dissipation : 500 mW
Package / Case : DO-35
Forward Continuous Current : 200 mA
Maximum Reverse Leakage Current : 25 nA

Parameters:

Technical/Catalog Information	1N914-TP
Vendor	Micro Commercial Co (VA)
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 10mA
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	5A @ 75V
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Through Hole, Axial
Package / Case	DO-35, Axial
Packaging	Cut Tape (CT)
Capacitance @ Vr, F	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1N914 TP 1N914TP 1N914 TPCT ND 1N914TPCTND 1N914-TPCT
