1N5406, US $ .09-.31 , Fairchild Semiconductor, 1N5406 DataSheet download, circuit diagram from SeekIC.com

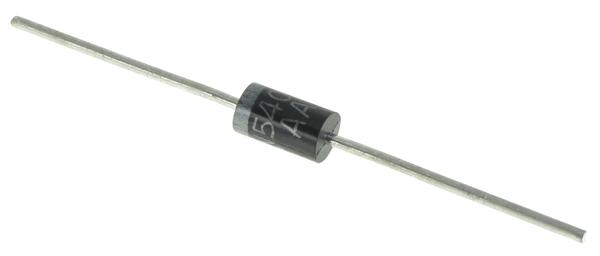

See larger image

SeekIC No. : 00168024 Detail

1N5406: Rectifiers 3.0a Rectifier General Purpose

1N5406 Data Sheet

US $ .09~.31 / Piece | Get Latest Price

Part Number:: 1N5406
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.31
$.23
$.13
$.09

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Product :	Standard Recovery Rectifiers	Configuration :	Single
Reverse Voltage :	600 V	Forward Voltage Drop :	1.2 V
Forward Continuous Current :	3 A	Max Surge Current :	200 A
Reverse Current IR :	5 uA	Mounting Style :	Through Hole
Package / Case :	DO-201AD	Packaging :	Reel

Description

Recovery Time :
Reverse Voltage : 600 V
Packaging : Reel
Configuration : Single
Reverse Current IR : 5 uA
Product : Standard Recovery Rectifiers
Forward Continuous Current : 3 A
Mounting Style : Through Hole
Max Surge Current : 200 A
Forward Voltage Drop : 1.2 V
Package / Case : DO-201AD

Specifications

Part Number	1N5406
Total Capacitance C_T (pF)	25
Max Average Rectified Current I_O (A)	3
Peak Repetitive Reverse Voltage V_RRM (V)	600
Peak Forward Surge Current I_FSM (A)	200
Forward Voltage Drop V_F (V)	1
Max Reverse Current I_R (µA)	10

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
1N5406	Full Production	RoHS Compliant	$0.077	DO-201AD	2	TAPE REEL	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Rating	Symbol	1N5400	1N5401	1N5402	1N5404	1N5406	1N5407	1N5408	Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	V_RRM V_RWM V_R	50	100	200	400	600	800	1000	Volts
Nonrepetitive Peak Reverse Voltage	V_RSM	100	200	300	525	800	1000	1200	Volts
Average Rectified Forward Current (Single Phase Resistive Load, 1/2, Leads, TL = 105°C)	I_O	3.0							Amp
Nonrepetitive Peak Surge Current (Surge Applied at Rated Load Conditions)	I_FSM	200 (one cycle)							Amp
Operating and Storage Junction Temperature Range	T_J T_stg	65 to +170 65 to +175							°C

Parameters:

Technical/Catalog Information	1N5406
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1V @ 3A
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	10A @ 600V
Speed	Standard Recovery >500ns, > 200mA (Io)
Mounting Type	Through Hole, Axial
Package / Case	DO-201AD, Axial
Packaging	Bulk
Capacitance @ Vr, F	-
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	1N5406 1N5406 1N5406OS ND 1N5406OSND 1N5406OS
