1N5282

Rectifiers Vr/80V Io/200mA BULK

product image

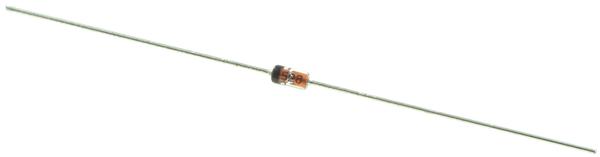

1N5282 Picture
See larger image
SeekIC No. : 00169386 Detail

1N5282: Rectifiers Vr/80V Io/200mA BULK

1N5282 Data Sheet

floor Price/Ceiling Price

US $ .01~.08 / Piece | Get Latest Price
Part Number:
1N5282
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.08
  • $.07
  • $.02
  • $.01
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Ultra Fast Recovery Rectifiers Configuration : Single
Reverse Voltage : 80 V Forward Voltage Drop : 1.3 V at 0.5 A
Recovery Time : 4 ns Forward Continuous Current : 0.2 A
Max Surge Current : 4 A Reverse Current IR : 0.1 uA
Mounting Style : Through Hole Package / Case : DO-35
Packaging : Bulk

Description

Product : Ultra Fast Recovery Rectifiers
Reverse Current IR : 0.1 uA
Packaging : Bulk
Configuration : Single
Mounting Style : Through Hole
Recovery Time : 4 ns
Reverse Voltage : 80 V
Forward Continuous Current : 0.2 A
Max Surge Current : 4 A
Package / Case : DO-35
Forward Voltage Drop : 1.3 V at 0.5 A


Specifications

Symbol
Parameter
Value
Units
VRRM
 Maximum Repetitive Reverse Voltage
80
V
I F(AV)
 Average Rectified Forward Current
200
mA
IFSM
 Non-repetitive Peak Forward Surge Current
Pulse Width = 1.0 second
Pulse Width = 1.0 microsecond
1.0
4.0
A
A
Tstg
 Storage Temperature Range
-65 to +200
TJ
 Operating Junction Temperature
175
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 200 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.


Parameters:

Technical/Catalog Information1N5282
VendorFairchild Optoelectronics Group
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)80V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If900mV @ 100mA
Reverse Recovery Time (trr)4ns
Current - Reverse Leakage @ Vr100nA @ 55V
SpeedSmall Signal =< 200mA (Io), Any Speed
Mounting TypeThrough Hole, Axial
Package / CaseDO-35, Axial
PackagingTape & Reel (TR)
Capacitance @ Vr, F2.5pF @ 0V, 1MHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 1N5282
1N5282
