1N5254BTR, US $ .03-.16 , Fairchild Semiconductor, 1N5254BTR DataSheet download, circuit diagram from SeekIC.com

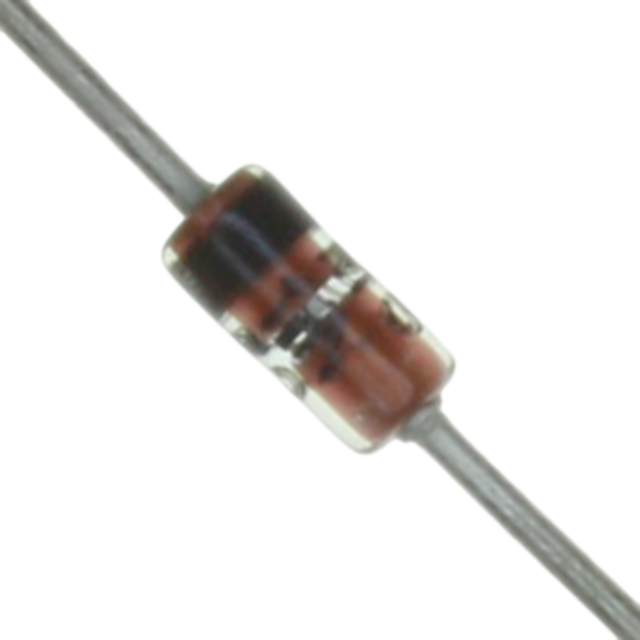

See larger image

SeekIC No. : 00266458 Detail

1N5254BTR: Zener Diodes 27V 0.5W Zener

1N5254BTR Data Sheet

US $ .03~.16 / Piece | Get Latest Price

Part Number:: 1N5254BTR
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.16
$.1
$.05
$.03

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1N52 - series evaluate
1N5210B evaluate
Specifications Items Symbol Ratings Unit Power Dissipation P TOT 500 m...
1N5221 evaluate
Features: . Standards zener voltage tolerance is± 20%. Add suffix A for ±10% tolerance and suffi...

Product Details

Quick Details

Zener Voltage :	27 V	Voltage Tolerance :	5 %
Voltage Temperature Coefficient :	0.089 % / C	Zener Current :	4.6 mA
Power Dissipation :	500 mW	Maximum Reverse Leakage Current :	0.1 uA
Maximum Zener Impedance :	41 Ohms	Maximum Operating Temperature :	+ 200 C
Mounting Style :	Through Hole	Package / Case :	DO-35
Packaging :	Reel

Description

Voltage Tolerance : 5 %
Packaging : Reel
Maximum Reverse Leakage Current : 0.1 uA
Power Dissipation : 500 mW
Zener Voltage : 27 V
Maximum Operating Temperature : + 200 C
Mounting Style : Through Hole
Package / Case : DO-35
Maximum Zener Impedance : 41 Ohms
Voltage Temperature Coefficient : 0.089 % / C
Zener Current : 4.6 mA

Parameters:

Technical/Catalog Information	1N5254BTR
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Voltage - Zener (Nom) (Vz)	27V
Power - Max	500mW
Impedance (Max) (Zzt)	16 Ohm
Voltage - Forward (Vf) (Max) @ If	1.2V @ 200mA
Current - Reverse Leakage @ Vr	100nA @ 11V
Tolerance	±5%
Mounting Type	Through Hole, Axial
Package / Case	DO-41, Axial
Packaging	Digi-Reel?
Operating Temperature	-65°C ~ 200°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1N5254BTR 1N5254BTR 1N5254BFSDKR ND 1N5254BFSDKRND 1N5254BFSDKR
