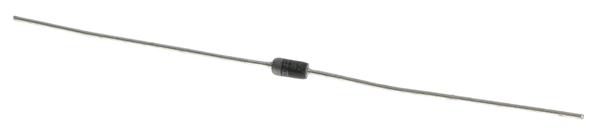

1N485B

Recovery Time :
Packaging : Bulk
Configuration : Single
Reverse Voltage : 200 V
Product : Standard Recovery Rectifiers
Mounting Style : Through Hole
Forward Continuous Current : 0.2 A
Max Surge Current : 4 A
Package / Case : DO-35
Forward Voltage Drop : 1 V at 0.1 A
Reverse Current IR : 0.025 uA


Features:

·Humidity proof glass
·Thermally matched system
·No thermal fatigue
·No applications restrictions
·Sigma Bond^TM plated contacts
·100% guaranteed solderability
·Problem free assembly
·Six Sigma quality
·LL-35 MiniMELF types available


Specifications

	Symbol	Value	Unit
Average Forward Rectified Current at TAmbient = 25 °C	IAV	0.65	Amp
Maximum Non-Repetitive Surge (8.3 mSecs. 1/2 sine)	IFSM	2.0	Amps
Junction Temperature Range	Tj	-65 to +200	°C
Storage Temperature Range	Ts	-55 to +200	°C
Max. Average Power Dissipation	Pdiss	250	mW

Description

Used as a general purpose diode 1N485B in power supplies, or in clipping and steering applications.  Operation of 1N485B at temperatures up to 200 degrees C, no derating. 1N485B can be used in harsh environments where hermeticity and low cost are important.Compatible with all major automatic pick and place mounting ceramic boards along with high temperature IR equipment.  May be used on  solder reflow.

Parameters:

Technical/Catalog Information	1N485B
Vendor	Fairchild Optoelectronics Group
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	25nA @ 175V
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Through Hole, Axial
Package / Case	DO-35, Axial
Packaging	Bulk
Capacitance @ Vr, F	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1N485B 1N485B
