1N457ATR, US $ .02-.08 , Fairchild Semiconductor, 1N457ATR DataSheet download, circuit diagram from SeekIC.com

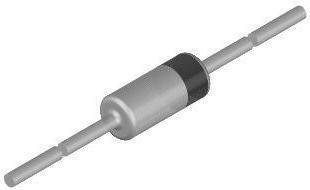

See larger image

SeekIC No. : 00168364 Detail

1N457ATR: Rectifiers High Conductance Low Leakage

1N457ATR Data Sheet

US $ .02~.08 / Piece | Get Latest Price

Part Number:: 1N457ATR
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.08
$.07
$.02
$.02

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/7/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1N4531 evaluate
DescriptionThe 1N4531 has three features.The first one is glass sealed envelope.(MSD, GSD).The sec...
1N4531 T/R evaluate
Rectifiers DIODE SW TAPE AXIAL
1N4531,113 evaluate
US $.02 - .03 / Piece

Diodes (General Purpose, Power, Switching) DIODE SW TAPE AXIAL

Product Details

Quick Details

Product :	Standard Recovery Rectifiers	Configuration :	Single
Reverse Voltage :	70 V	Forward Voltage Drop :	1 V at 0.1 A
Forward Continuous Current :	0.2 A	Max Surge Current :	4 A
Reverse Current IR :	0.025 uA	Mounting Style :	Through Hole
Package / Case :	DO-35	Packaging :	Reel

Description

Recovery Time :
Packaging : Reel
Configuration : Single
Product : Standard Recovery Rectifiers
Mounting Style : Through Hole
Forward Continuous Current : 0.2 A
Max Surge Current : 4 A
Package / Case : DO-35
Forward Voltage Drop : 1 V at 0.1 A
Reverse Current IR : 0.025 uA
Reverse Voltage : 70 V

Parameters:

Technical/Catalog Information	1N457ATR
Vendor	Fairchild Optoelectronics Group (VA)
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	70V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	25nA @ 60V
Speed	Small Signal =< 200mA (Io), Any Speed
Mounting Type	Through Hole, Axial
Package / Case	DO-35, Axial
Packaging	Cut Tape (CT)
Capacitance @ Vr, F	8pF @ 0V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1N457ATR 1N457ATR 1N457ACT ND 1N457ACTND 1N457ACT
