1N457

Rectifiers High Conductance Low Leakage

product image

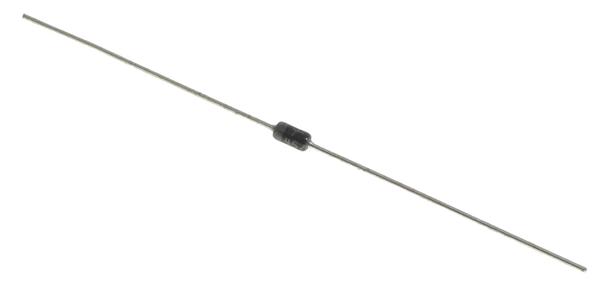

1N457 Picture
See larger image
SeekIC No. : 00168971 Detail

1N457: Rectifiers High Conductance Low Leakage

1N457 Data Sheet

floor Price/Ceiling Price

US $ .01~.08 / Piece | Get Latest Price
Part Number:
1N457
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.08
  • $.07
  • $.01
  • $.01
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Standard Recovery Rectifiers Configuration : Single
Reverse Voltage : 70 V Forward Voltage Drop : 1 V at 0.02 A
Forward Continuous Current : 0.2 A Max Surge Current : 4 A
Reverse Current IR : 0.025 uA Mounting Style : Through Hole
Package / Case : DO-35 Packaging : Bulk

Description

Recovery Time :
Packaging : Bulk
Configuration : Single
Product : Standard Recovery Rectifiers
Mounting Style : Through Hole
Forward Continuous Current : 0.2 A
Forward Voltage Drop : 1 V at 0.02 A
Max Surge Current : 4 A
Package / Case : DO-35
Reverse Current IR : 0.025 uA
Reverse Voltage : 70 V


Specifications

Symbol Parameter Value Units
VRRM Maximum Repetitive Reverse Voltage 80 V
IF(AV) Average Rectified Forward Current 500 mA
IFSM Non-repetitive Peak Forward Surge Current
Pulse Width = 1.0 second
Pulse Width = 1.0 microsecond		 1.0
4.0		 A
A
TSTG Storage Temperature Range -65 to +200 °C
TJ Operating Junction Temperature 175 °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 200 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.


Parameters:

Technical/Catalog Information1N457
VendorFairchild Optoelectronics Group
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)70V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If1V @ 20mA
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr25nA @ 60V
SpeedSmall Signal =< 200mA (Io), Any Speed
Mounting TypeThrough Hole, Axial
Package / CaseDO-35, Axial
PackagingBulk
Capacitance @ Vr, F8pF @ 0V, 1MHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 1N457
1N457
