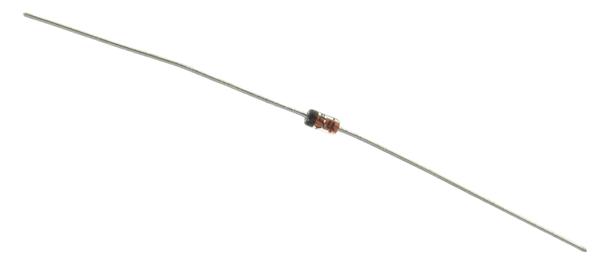

Product : | Ultra Fast Recovery Rectifiers | Configuration : | Single |
Reverse Voltage : | 75 V | Forward Voltage Drop : | 1 V at 0.01 A |
Recovery Time : | 4 ns | Forward Continuous Current : | 0.4 A |
Max Surge Current : | 4 A | Reverse Current IR : | 0.1 uA at 50 V |
Mounting Style : | Through Hole | Package / Case : | DO-35 |
Packaging : | Bulk |
Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
---|---|---|---|---|---|---|---|---|
1N4454 | Full Production | RoHS Compliant | $0.0105 | DO-35 | 2 | BULK | DO-35A | Line 1: $Y (Fairchild logo) Line 2: 44 Line 3: 54 |
1N4454TR | Full Production | RoHS Compliant | $0.0105 | DO-35 | 2 | TAPE REEL | DO-35A | Line 1: $Y (Fairchild logo) Line 2: 44 Line 3: 54 |
* Fairchild 1,000 piece Budgetary Pricing |
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product 1N4454 is available. Click here for more information . |
Type | Peak reverse voltage VRM(V) |
Max. Aver. Rectified Current I(AV)Ma |
Max. Power Dissip At 25 °C Ptot(mW) |
Max. Junction tempera- ture TJ°C |
Max. Forward Voltage drop |
Max. Reverse Current |
Max. Reverse Recovery Time | |||
VF (V) |
at IF (mA) |
IR (nA) |
at VR(V) |
trr(ns) Max. |
Test conditions | |||||
1N914 | 100 | 75 | 500 | 200 | 1.0 | 10 | 25 | 20 | 4.0 | IF=10mA, VR=6V, RL=100 , to IR=1mA |
1N41491) | 100 | 150 | 500 | 200 | 1.0 | 10 | 25 | 20 | 4.0 | IF=10mA, VR=6V, RL=100 , to IR=1mA |
1N4150 | 50 | 200 | 500 | 200 | 1.0 | 200 | 100 | 50 | 4.0 | IF=IR=10 to 200mA, to 0.1 IF |
1N4152 | 40 | 150 | 400 | 175 | 0.55 | 0.10 | 50 | 30 | 2.0 | IF=IR=10 to 200mA, to 0.1 IF |
1N4153 | 75 | 150 | 400 | 175 | 0.55 | 0.10 | 50 | 50 | 2.0 | IF=10mA, VR=6V, RL=100 , to IR=1mA |
1N4154 | 35 | 150 | 500 | 200 | 1.0 | 0.10 | 100 | 25 | 2.0 | IF=10mA, VR=6V, RL=100 , to IR=1mA |
1N44471) | 100 | 150 | 500 | 200 | 1.0 | 20 | 25 | 20 | 4.0 | IF=10mA, VR=6V, RL=100 , to IR=1mA |
1N44491) | 100 | 150 | 500 | 200 | 1.0 | 30 | 25 | 20 | 4.0 | IF=10mA, VR=6V, RL=100 , to IR=1mA |
1N4450 | 40 | 150 | 400 | 175 | 0.54 | 0.50 | 50 | 30 | 4.0 | IF=IR=10mA to, IR=1mA |
1N4451 | 40 | 150 | 400 | 175 | 0.50 | 0.10 | 50 | 30 | 10 | IF=IR=10mA to, IR=1mA |
1N4453 | 30 | 150 | 400 | 175 | 0.55 | 0.10 | 50 | 20 | ||
1N4454 | 75 | 150 | 400 | 175 | 1.0 | 10 | 100 | 250 | 4.0 | IF=IR=10mA to, IR=1mA |
Notes: 1.These diodes are also available in glass case DO-34
2.Valid provided that leads at a distance of 8mm from case are kept at ambient temperature parameters for diodes in case DO-34: Ptot=300mW TSTG=-65 to +175 TJ=175 RJA=400K/W
High Conductance Ultra Fast Diode
Sourced from Process 1R. See MMBD1201-1205 for characteristics.
1N4454Technical/Catalog Information | 1N4454 |
Vendor | Fairchild Optoelectronics Group |
Category | Discrete Semiconductor Products |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 50V |
Current - Average Rectified (Io) | 200mA |
Voltage - Forward (Vf) (Max) @ If | 1V @ 10mA |
Reverse Recovery Time (trr) | 4ns |
Current - Reverse Leakage @ Vr | 100nA @ 50V |
Speed | Small Signal =< 200mA (Io), Any Speed |
Mounting Type | Through Hole, Axial |
Package / Case | DO-35, Axial |
Packaging | Bulk |
Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 1N4454 1N4454 |
