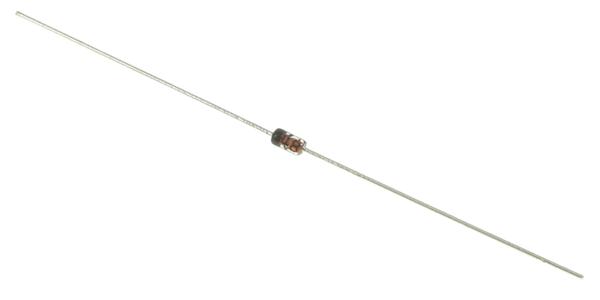

1N4448: Diodes (General Purpose, Power, Switching) Hi Conductance Fast
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Product : | General Purpose Diodes | Forward Continuous Current : | 0.3 A |
Max Surge Current : | 4 A | Configuration : | Single |
Recovery Time : | 4 ns | Forward Voltage Drop : | 1 V |
Maximum Power Dissipation : | 0.5 W | Package / Case : | DO-35 |
Packaging : | Bulk |
Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
---|---|---|---|---|---|---|---|---|
1N4448 | Full Production | RoHS Compliant | $0.0105 | DO-35 | 2 | BULK | DO-35A | Line 1: $Y (Fairchild logo) Line 2: 44 Line 3: 48 |
1N4448TR | Full Production | RoHS Compliant | $0.0105 | DO-35 | 2 | TAPE REEL | DO-35A | Line 1: $Y (Fairchild logo) Line 2: 44 Line 3: 48 |
* Fairchild 1,000 piece Budgetary Pricing |
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product 1N4448 is available. Click here for more information . |
Symbol |
Parameter |
Value |
Units |
VRRM |
Maximum Repetitive Reverse Voltage |
100 |
V |
IF(AV) |
Average Rectified Forward Current |
200 |
mA |
IFSM |
Non-repetitive Peak Forward Surge Current Pulse Width = 1.0 second Pulse Width = 1.0 microsecond |
1.0 4.0 |
A A |
Tstg |
Storage Temperature Range |
-65 to +200 |
°C |
TJ |
Operating Junction Temperature |
175 |
°C |
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 200 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Technical/Catalog Information | 1N4448 |
Vendor | Fairchild Optoelectronics Group |
Category | Discrete Semiconductor Products |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 100V |
Current - Average Rectified (Io) | 200mA |
Voltage - Forward (Vf) (Max) @ If | 1V @ 100mA |
Reverse Recovery Time (trr) | 4ns |
Current - Reverse Leakage @ Vr | 5A @ 75V |
Speed | Small Signal =< 200mA (Io), Any Speed |
Mounting Type | Through Hole, Axial |
Package / Case | DO-35, Axial |
Packaging | Bulk |
Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
Lead Free Status | Lead Free |
RoHS Status | RoHS Compliant |
Other Names | 1N4448 1N4448 |
