1N3154

Features: • 1N3154-1 THRU 1N3157-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/158• 8.4 V0LT NOMINAL ZENER VOLTAGE• TEMPERATURE COMPENSATED ZENER REFERENCE DIODES• METALLURGICALLY BONDEDPinoutSpecificationsOperating Temperature. . . . . . . . . . . . . . . . ...

product image

1N3154 Picture
See larger image
SeekIC No. : 004212620 Detail

1N3154: Features: • 1N3154-1 THRU 1N3157-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/158• 8.4 V0LT NOMINAL ZENER VOLTAGE• TEMPERATURE COMPENSATED ZENER REFERENCE DIODES...

1N3154 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
1N3154
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1N3154-1 THRU 1N3157-1 AVAILABLE IN JAN, JANTX, JANTXV
   AND JANS PER MIL-PRF-19500/158
• 8.4 V0LT NOMINAL ZENER VOLTAGE
• TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
• METALLURGICALLY BONDED


Pinout

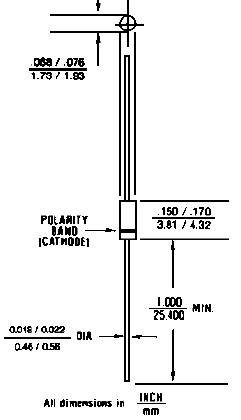

Connection Diagram


Specifications

Operating Temperature. . . . . . . . . . . . . . . . . . . . .  . . . . . . . -65°C to +175°C
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . -65°C to +175°C
DC Power Dissipation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW @ +50°C
Power Derating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 mW / °C above +50°C

REVERSE LEAKAGE CURRENT
lR = 10 µA@ 25°C & VR = 5.5Vdc
