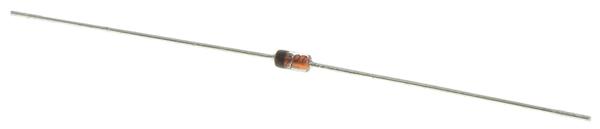

See larger image

SeekIC No. : 00168218 Detail

1N3070TR: Rectifiers Hi Conductance Fast

1N3070TR Data Sheet

US $ .02~.06 / Piece | Get Latest Price

Part Number:: 1N3070TR
Mfg:: Fairchild Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.06
$.06
$.03
$.02

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1N3015B evaluate
Features: • JEDEC registered 1N2970 thru 1N3015B and 1N3993 thru 1N4000A • Internal so...
1N3016B evaluate
Features: • Zener Voltage Range: 6.8V to 200V • Hermetically sealed DO-13 metal packag...
1N3016B-1 evaluate
Features: SpecificationsDescription The 1N3016B-1 is available in jan, jantx and jantxv per mil-pr...

Product Details

Quick Details

Product :	Ultra Fast Recovery Rectifiers	Configuration :	Single
Reverse Voltage :	200 V	Forward Voltage Drop :	1 V at 0.1 A
Recovery Time :	50 ns	Forward Continuous Current :	0.5 A
Max Surge Current :	4 A	Reverse Current IR :	0.1 uA
Mounting Style :	Through Hole	Package / Case :	DO-35
Packaging :	Reel

Description

Product : Ultra Fast Recovery Rectifiers
Reverse Current IR : 0.1 uA
Packaging : Reel
Configuration : Single
Reverse Voltage : 200 V
Mounting Style : Through Hole
Recovery Time : 50 ns
Max Surge Current : 4 A
Package / Case : DO-35
Forward Voltage Drop : 1 V at 0.1 A
Forward Continuous Current : 0.5 A

Parameters:

Technical/Catalog Information	1N3070TR
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 175V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Axial
Package / Case	DO-35, Axial
Packaging	Tape & Reel (TR)
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1N3070TR 1N3070TR
