Product Details

Description

Features:

• Square RBSOA
• Low Saturation Voltage
• Less Total Power Dissipation
• Minimized Internal Stray Inductance

Application

Connection Diagram

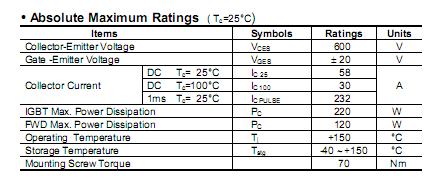

Specifications

Items		Symbols	Ratings	Units
Collector-Emitter Voltage		V_CES	600	V
Gate -Emitter Voltage		V_GES	± 20	V
Collector Current	DC T_c= 25°C	I_{C 25}	58	A
	DC T_c=100°C	I_{C 100}	30
	1ms T_c= 25°C	I_{C PULSE}	232
IGBT Max. Power Dissipation		P_C	220	W
FWD Max. Power Dissipation		P_C	120	W
Operating Temperature		T_j	+150	°C
Storage Temperature		T_stg	-40 ~ +150	°C
Mounting Screw Torque			70	Nm
