19TQ015

Recovery Time :
Maximum Power Dissipation :
Mounting Style : Through Hole
Configuration : Single
Operating Temperature Range : - 55 C to + 125 C
Product : Schottky Rectifiers
Packaging : Tube
Package / Case : TO-220AC
Peak Reverse Voltage : 15 V
Max Surge Current : 700 A
Forward Continuous Current : 19 A
Forward Voltage Drop : 0.36 V
Maximum Reverse Leakage Current : 10500 uA


Features:

125°C T_j operation (V_r < 5V)
Optimized for OR-ing applications
Ultra low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

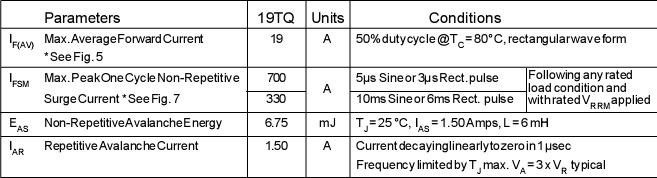

Specifications






Description

The 19TQ015 Schottky rectifier has been optimized for ultra low forward voltage drop specifically for the OR-ing of parallel power supplies. The proprietary barrier technology allows for reliable operation up to 125°C junction temperature. Typical applications are in parallel switching power supplies, convert-ers, reverse battery protection, and redundant power subsystems.

Schottky Rectifier 19TQ015, 19 A
