18CV8 -10

The 18CV8 -10 is a Programmable Electrically Erasable Logic (PEEL) device providing an attractive alternative to ordinary PLDs. The 18CV8 -10 offers the performance,flexibility, ease of design and production practicality needed by logic designers today.

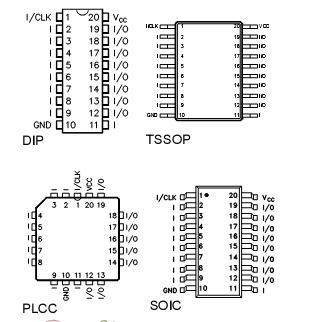

The 18CV8 -10 is available in 20-pin DIP, PLCC, SOIC and TSSOP packages with speeds ranging from 5ns to 25ns with power consumption as low as 37mA. EE-Repro-grammability provides the convenience of instant repro-gramming for development and reusable production inventory minimizing the impact of programming changes or errors. EE-Reprogrammability also improves factory testability, thus assuring the highest quality possible.

The 18CV8 -10 architecture allows it to replace over 20 standard 20-pin PLDs (PAL, GAL, EPLD etc.). It also pro-vides additional architecture features so more logic can be put into every design. ICT's JEDEC file translator instantly converts to the PEEL18CV8 existing 20-pin PLDs without the need to rework the existing design. Development and programming support for the 18CV8 -10 is provided by popular third-party programmers and development software.ICT also offers free PLACE development software and alow-cost development system (PDS-3).
