185NQ015

Series: -
Manufacturer: Vishay Semiconductors
Speed: Fast Recovery = 200mA (Io)
Mounting Type: Chassis Mount
Reverse Recovery Time (trr): -
Diode Type: Schottky
Packaging: Bulk
Diode Configuration: Single
Package / Case: D-67 HALF-PAK
Supplier Device Package: HALF-PAK
Current - Average Rectified (Io) (per Diode): 180A
Voltage - DC Reverse (Vr) (Max): 15V
Voltage - Forward (Vf) (Max) @ If: 400mV @ 180A
Current - Reverse Leakage @ Vr: 60mA @ 15V


Features:

125°C T_joperation (V_r< 5V)
Unique high power, Half-Pak module
Optimized for OR-ing applications
Ultra low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

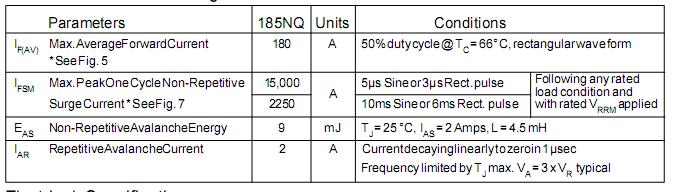

Specifications




Description

The 185NQ015 high current Schottky rectifier module has been optimized for ultra low forward voltage drop specifically for the OR-ing of parallel power supplies. The proprietary barrier technology allows for reliable operation up to 125 °C junction temperature. Typical applications of 185NQ015 are in parallel switching power supplies, converters, reverse battery protection, and redundant power subsystems.
