182NQ030

Series: -
Manufacturer: Vishay Semiconductors
Speed: Fast Recovery = 200mA (Io)
Mounting Type: Chassis Mount
Reverse Recovery Time (trr): -
Diode Type: Schottky
Packaging: Bulk
Diode Configuration: Single
Package / Case: D-67 HALF-PAK
Supplier Device Package: HALF-PAK
Current - Average Rectified (Io) (per Diode): 180A
Voltage - DC Reverse (Vr) (Max): 30V
Voltage - Forward (Vf) (Max) @ If: 510mV @ 180A
Current - Reverse Leakage @ Vr: 15mA @ 30V


Features:

150° C T_^j operation
Unique high power, Half-Pak module
Replaces three parallel DO-5's
Easier to mount and lower profile than DO-5's
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
Very low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability

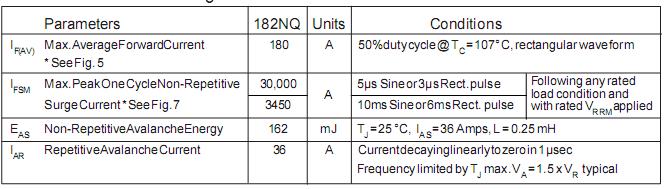

Specifications




Description

The 182NQ030 high current Schottky rectifier module has been optimized for very low forward voltage drop, with moderate leakage.
The proprietary barrier technology allows for reliable operation up to 150° C junction temperature.Typical applications of 182NQ030 are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
