175T48

Features: UL,CSA, TUVapprovedHigh outputpower (up to175W)High efficiency (82% typ. on GS175T48-5mod-ule)Paralleloperationwithequal currentsharingSynchronizationpinRemoteON/OFFRemoteloadvoltagesense compensationOutputshort-circuitprotectionUndervoltagelock-outMinimalovershootduring loadtransientsOu...

product image

175T48 Picture
See larger image
SeekIC No. : 004211289 Detail

175T48: Features: UL,CSA, TUVapprovedHigh outputpower (up to175W)High efficiency (82% typ. on GS175T48-5mod-ule)Paralleloperationwithequal currentsharingSynchronizationpinRemoteON/OFFRemoteloadvoltagesense ...

175T48 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
175T48
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/8/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

UL,CSA, TUVapproved
High outputpower (up to175W)
High efficiency (82% typ. on GS175T48-5mod-ule)
Paralleloperationwithequal currentsharing
Synchronizationpin
RemoteON/OFF
Remoteloadvoltagesense compensation
Outputshort-circuitprotection
Undervoltagelock-out
Minimalovershootduring loadtransients
Outputovervoltageprotection
500VDC inputto outputisolationvoltage
Internalinputand outputfiltering
Softstart
PCBor chassismountable
Optionaladditionalfinnedheatsink
Mechanical dimensions 125 · 66,5 · 19 (4,92·2,62 · 0,75)

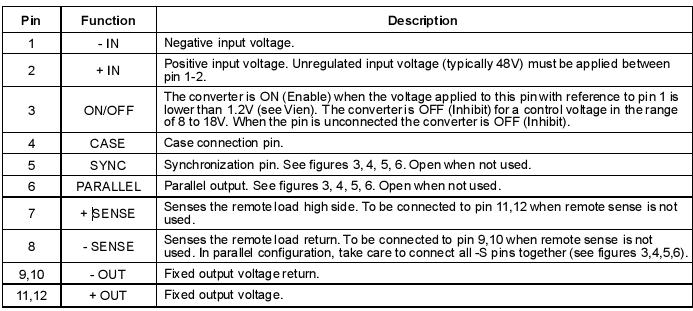

Pinout

Connection Diagram


Description

The GS120/175T48 family includes 120/175WDC-DC converters used togenerate fixed isolated out-put voltages with an output current up to 35A from a wide range input voltage(38 to 60V).
The GS120/175T48 suffixE Identifies them etricth reading on the planar heatsink (see fig. 1).
