15-92-2450, US $ 2.31-4.66 , Molex, 15-92-2450 DataSheet download, circuit diagram from SeekIC.com

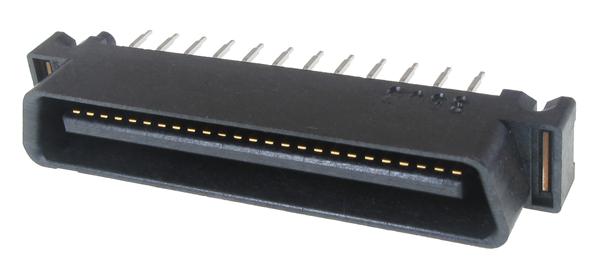

See larger image

SeekIC No. : 002124956 Detail

15-92-2450: Board to Board / Mezzanine Connectors 50P VERT. EBBI PLUG 1.27MM (.050) PITCH

15-92-2450 Data Sheet

US $ 2.31~4.66 / Piece | Get Latest Price

Part Number:: 15-92-2450
Mfg:: Molex
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50

Unit Price
$4.66
$2.95
$2.49
$2.31

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

15-91-0040 evaluate
US $.1 - .14 / Piece

Headers & Wire Housings 4 CKT VERT SMT HDR
15-91-0047 evaluate
US $.12 - .12 / Piece

Headers & Wire Housings CGrid SMT Hdr w/L.Pe eg 15 SAu 4Ckt (320)
15-91-0048 evaluate
US $.1 - .1 / Piece

Headers & Wire Housings CGrid SMT Bkwy Hdr 1 5 SAu 4Ckt Bulk(320)

Product Details

Quick Details

Series :	71661	Product Type :	Headers
Pitch :	1.27 mm	Mounting Style :	Through Hole
Mounting Angle :	Vertical	Number of Positions / Contacts :	50
Number of Rows :	2	Housing Material :	Thermoplastic, High Temperature
Contact Material :	Copper Alloy	Contact Plating :	Gold
Voltage Rating :	30 V	Current Rating :	1 A

Description

Stack Height :
Mounting Angle : Vertical
Number of Rows : 2
Housing Material : Thermoplastic, High Temperature
Contact Plating : Gold
Voltage Rating : 30 V
Product Type : Headers
Contact Material : Copper Alloy
Current Rating : 1 A
Pitch : 1.27 mm
Number of Positions / Contacts : 50
Mounting Style : Through Hole
Series : 71661

Parameters:

Technical/Catalog Information	15-92-2450
Vendor	Molex Connector Corporation
Category	Connectors
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	30in (0.76m)
Features	Board Lock
Flange Feature	-
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	2
Termination	Solder
Type	-
Connector Style	Center Strip Contacts
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	15 92 2450 15922450
