14A-56-20, US $ 11.59-11.59, 14A-56-20 DataSheet download, circuit diagram from SeekIC.com

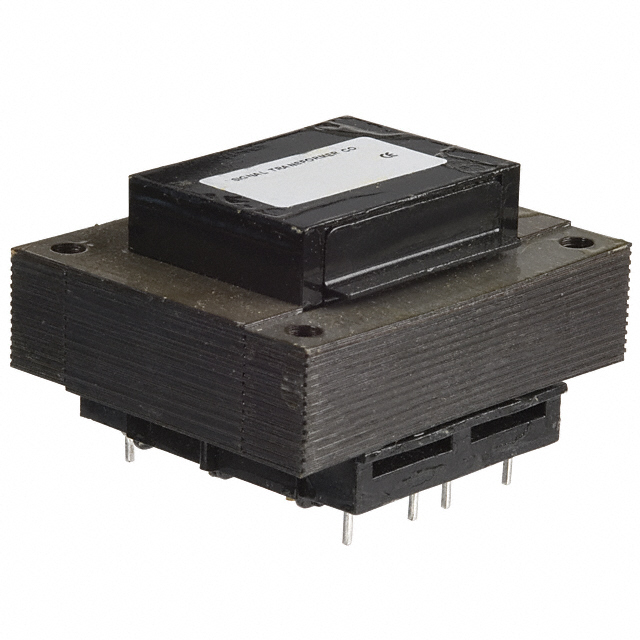

See larger image

SeekIC No. : 004195811 Detail

14A-56-20: XFRMR PWR 115/230V 10V 5.6A

14A-56-20 Data Sheet

US $ 11.59~11.59 / Piece | Get Latest Price

Part Number:: 14A-56-20
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~20

Unit Price
$11.59

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

14A-10-10B3 evaluate
US $5.86 - 8.69 / Piece

Power Transformers INTL PC MOUNT XFMR
14A-10-12B9 evaluate
US $6.29 - 9.33 / Piece

Power Transformers INTL PC MOUNT XFMR
14A-10-16B15 evaluate
Power Transformers Intl PC Mount XFMR, See Mktg for high volume

Product Details

Quick Details

Series:	14A	Manufacturer:	Signal Transformer
Transformer Type:	-	Number of Channels per Chip :	5
Type:	Standard	Maximum Power:	56 VA
Turns Ratio - Primary:Secondary:	-	Inductance:	-
Primary Winding(s):	Dual	Current Rating:	-
Secondary Winding(s):	Dual, No Center Tap	DC Resistance (DCR):	-
Series Output Voltage @ Current:	20 VAC @ 2.8A	E.T.:	-
Parallel Output Voltage @ Current:	10 VAC @ 5.6A	Mounting Type:	Through Hole
Size / Dimension:	41.30mm L x 36.50mm W	Height - Seated (Max):	28.60mm

Description

Manufacturer: Signal Transformer
Transformer Type: -
Type: Standard
Turns Ratio - Primary:Secondary: -
Inductance: -
Current Rating: -
Secondary Winding(s): Dual, No Center Tap
DC Resistance (DCR): -
E.T.: -
Mounting Type: Through Hole
Termination Style: PC Pin
Primary Winding(s): Dual
Series: 14A
Size / Dimension: 41.30mm L x 36.50mm W
Height - Seated (Max): 28.60mm
Maximum Power: 56 VA
Series Output Voltage @ Current: 20 VAC @ 2.8A
Parallel Output Voltage @ Current: 10 VAC @ 5.6A

Parameters:

Technical/Catalog Information	14A-56-20
Vendor	Signal Transformers
Category	Transformers
Mounting Type	Through Hole
Type	Standard
Primary Winding(s)	Dual
Secondary Winding(s)	Dual, No Center Tap
Series Output Voltage @ Current	20 VAC @ 2.8A
Parallel Output Voltage @ Current	10 VAC @ 5.6A
Maximum Power	56 VA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	14A 56 20 14A5620 595 1017 ND 5951017ND 595-1017
