Product Details

Description



Features:

•DC input range: 36- 75V
•Input surge withstand: 100V for 100ms
•DC output: 12V
•Programmable output: 10 to 110%
•Regulation: ±0.2% no load to full load
•Efficiency: 85.7%
•Maximum operating temperature: 100°C at full load
•Power density: 99W/cubic inch
•Height above board: 0.43 in. (10,9 mm)
•Parallelable, with N+M fault tolerance
•Low noise ZCS/ZVS architecture



Application

telecommunications and distributed power systems

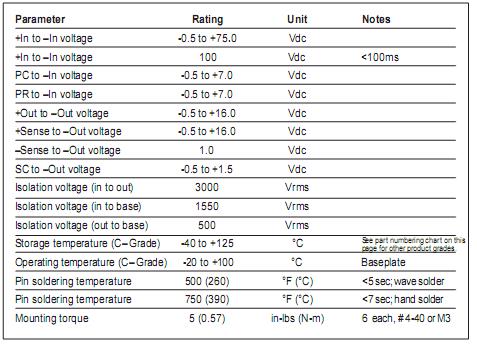

Specifications

  Connection Diagram


Description

This 12Vout DC-DC converter module uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component. For example, a plated cavity core transformer couples widely separated primary and secondary windings, resulting in low in-to-out parasitic capacitance and noise.

High frequency ZCS/ZVS switching, advanced power semiconductor packaging and thermal management provide high power density with low temperature gradients. Extensive use of silicon integration results in 1/3 the part count  of a 1st Generation converter.
