1200V-01

Features: •Power supply voltage : 8V to 18V (built-in 5V regulator for logic)• Operating temperature range : 40°C to +85°C• 30-segment driver outputs (IOH = 6mA at VOH = VDD 0.8V)• Built-in analog dimming circuit (PWM: 12.5% Max at 6-bit resolution)• Built-in digital...

product image

1200V-01 Picture
See larger image
SeekIC No. : 004208505 Detail

1200V-01: Features: •Power supply voltage : 8V to 18V (built-in 5V regulator for logic)• Operating temperature range : 40°C to +85°C• 30-segment driver outputs (IOH = 6mA at VOH = VDD 0.8V)...

1200V-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
1200V-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Power supply voltage : 8V to 18V (built-in 5V regulator for logic)
• Operating temperature range : 40°C to +85°C
• 30-segment driver outputs (IOH = 6mA at VOH = VDD 0.8V)
• Built-in analog dimming circuit (PWM: 12.5% Max at 6-bit resolution)
• Built-in digital dimming circuit (11-bit resolution)
• Built-in 5 x 6 keyscan circuit
• Built-in RC oscillation circuit (external R and C)
• Built-in power-on-reset circuit.
• The product name differs depending on the bonding option pin selected:
   PWM OUT/ BLANK IN : MSC1200-01
   DATA OUT :                MSC1200V-01
• Package :
   56-pin plastic QFP (QFP56P910-0.652K) (Product name: MSC1200-01GS-2K/MSC1200V-01GS-2K)


Pinout

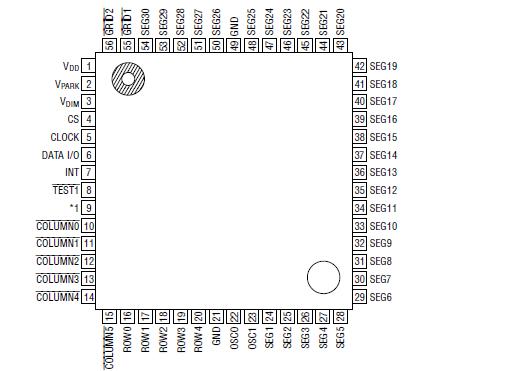

Connection Diagram


Specifications

Parameter
Symbol
Condition
Rating
Unit
Supply Voltage
VDD
--
0.3 to +20
V
Input Voltage (1)
VIN1
All inputs except VPARK
0.3 to +6
V
Input Voltage (2)
VIN2
VPARK
0.3 to VDD +0.3
V
Storage Temperature
TSTG
--
65 to +150
°C
Power Dissipation
PD
Ta = 85°C
400
mW



Description

The 1200V-01 is a Bi-CMOS display driver for 1/2-duty vacuum fluorescent display tube. The 1200V-01 consists of a 64-bit shift register, latches, an analog dimming circuit, a digital dimming circuit, a keyscan circuit, and drivers.

The interface with a microcomputer can be done only with four signal lines (CS, DATA I/O, CLOCK, and INT). Also, the DATA I/O and CLOCK signal lines can be shared with other peripherals by using the chip select function.
